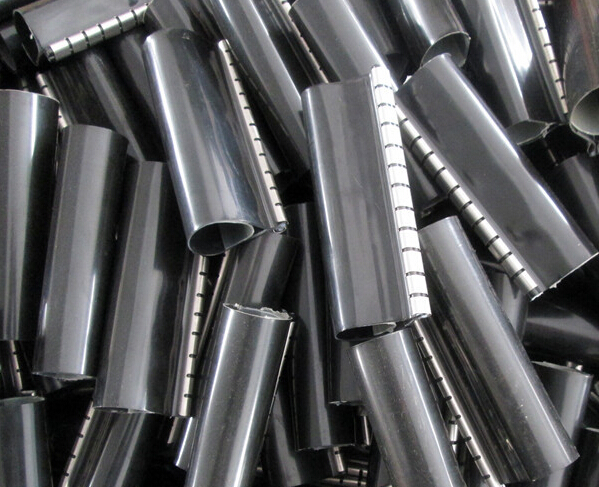

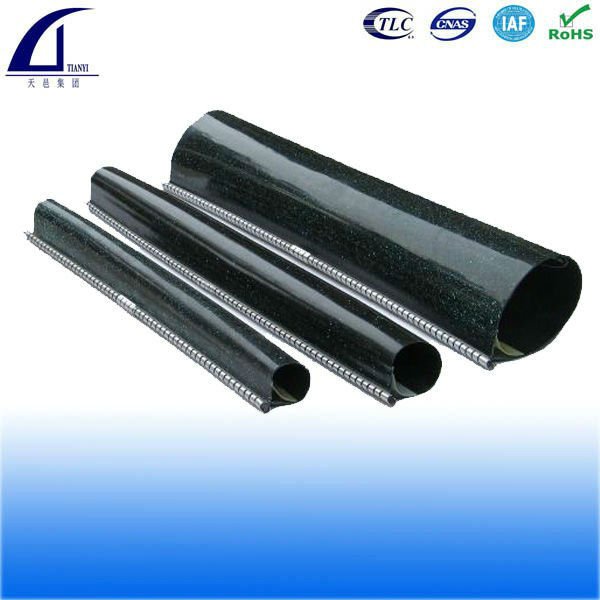

Heat Shrink Wraparound Cable Repair Sleeve
- Fiber-reinforced: Yes
- Wraparound type: Yes
- Hot melt adhesive layer: Yes
- Thermo Adhesive Painting: Yes
- Product description: 1. Equal to Raychem CWST heat shrink wraparound cable repair sleeve; 2. Equal to 3M HDCW Heat Shrink Cable Repair Sleeve; 3. Equal to Hellermanntyton RMS wrap-around sleeves; 4. Customer length,p
Product introduction
RSBW Heat Shrink Wraparound Cable Repair sleeve, equal to CWST heat shrinkable wraparound cable repair sleeve, 3M HDCW Heat Shrink Cable Repair Sleeve and Hellermanntyton RMS wrap-around sleeves. It is primarily designed to repair damaged cable jacketing quickly. These wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.
Our Heat Shrink Cable Repair Sleeve RSBJW offers excellent protection against mechanical stress. This wraparound sleeve with hot melt adhesive, forms a durable, moisture resistant seal. The cross linked polyolefin construction offers reliable performance in harsh environmental conditions. The wrap sleeve design allows it to be installed in tight spaces with ordinary heating. ANSI C119.1 Requirement and RoHS Compliant.
RSBW Heat Shrink Wraparound Cable Repair Sleeve Applications:

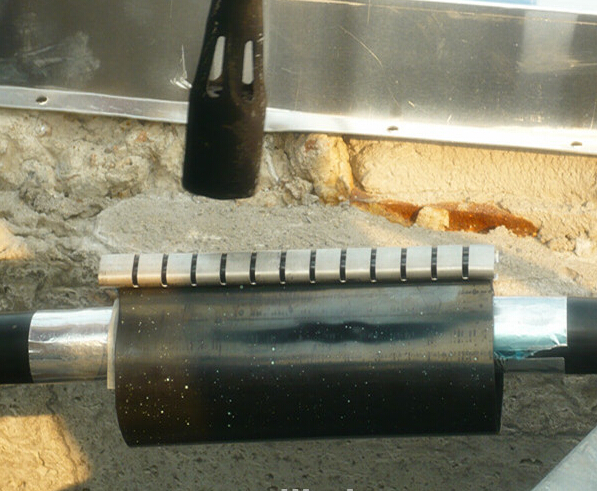

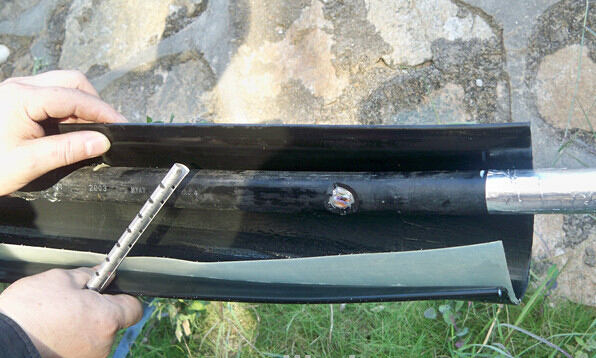

• Cable jacket repair
• Primary insulation cover on low voltage cables
• Re-jacketing cover for power cables
RSBW Heat Shrink Wraparound Cable Repair Sleeve Specificaton:
Description |
Max. Cable Dia. |
Min. Cable Dia. |
Length Supplied |
Remark |
RSBW 35/12-XX |
35 |
12 |
100~1500mm |
|
RSBW 45/15-XX |
45 |
15 |
100~1500mm |
|
RSBW 55/18-XX |
55 |
18 |
100~1500mm |
|
RSBW 65/22-XX |
65 |
22 |
100~1500mm |
|
RSBW 75/25-XX |
75 |
25 |
100~1500mm |
|
RSBW 90/30-XX |
90 |
30 |
100~1500mm |
|
RSBW 100/30-XX |
100 |
30 |
100~1500mm |
|
RSBW 110/37-XX |
110 |
37 |
100~1500mm |
|
RSBW 125/37-XX |
125 |
37 |
100~1500mm |
|
RSBW 135/45-XX |
135 |
45 |
100~1500mm |
|
RSBW 150/45-XX |
150 |
45 |
100~1500mm |
|
RSBW 170/55-XX |
170 |
55 |
100~1500mm |
|
RSBW 220/55-XX |
220 |
55 |
100~1500mm |
|
Remark:
- XX stands for selected length, Length=N*50mm, can be customized
- These heat shrinkable repaire sleeves can be customized, with or without valve.
Please feel free to contact us if any clarifications needed.
