> Wi-Fi 6 Mesh Routers

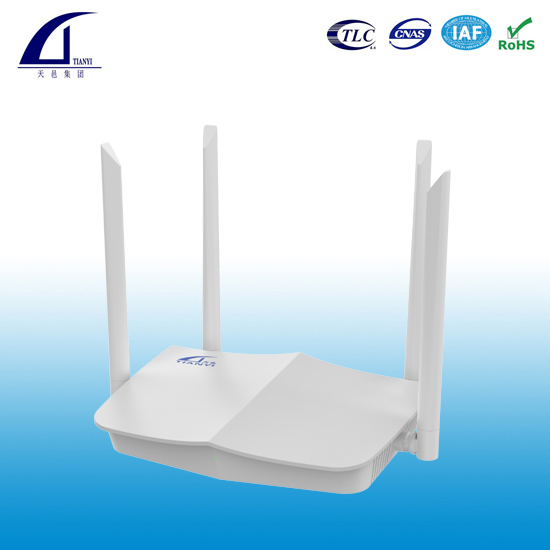

TY6201 AX1800 WiFi 6 Router

SOC Chipset:BCM 6755
2*2 11ax@2.4GHz +2*2 11ax@5GHz
Max. Flash Memory:2 GBit
Max. DDR3 for CPU:2 GBit
Product description: Equivalent to TP LINK Archer AX1800 dual band Wi-Fi 6 Router, Tianyi TY-6201 WiFi 6 Mesh Router- AX1800 Dual Band AX WiFi Router is designed on latest Wi-Fi technology Next-Gen WiFi 802.11ax certified
Inquiry

Product introduction

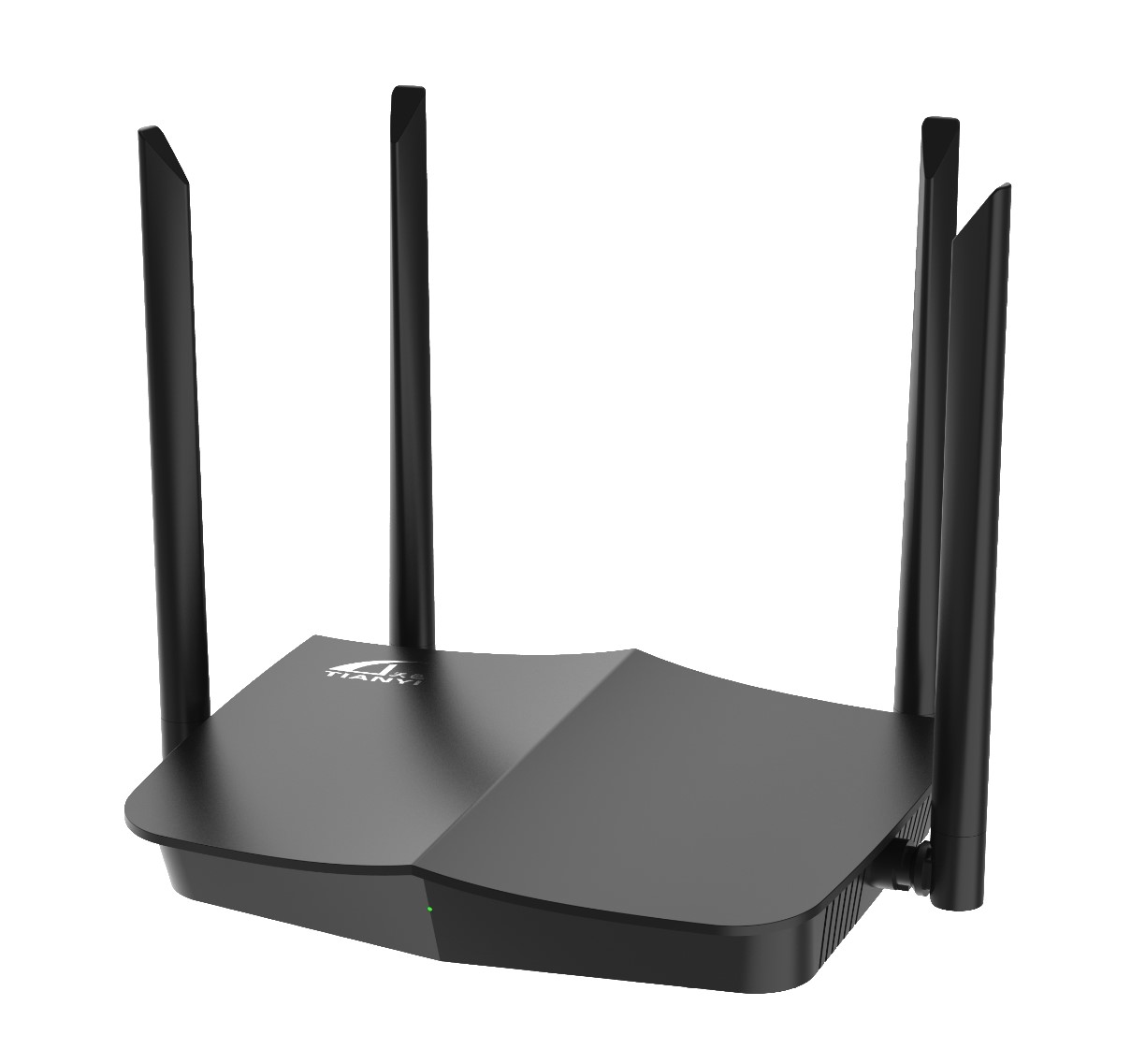

Tianyi TY-6201 802.11ax AX1800 Dual-Band Gigabit Wi-Fi 6 Mesh Router

Product Descriptions

TY6201 Wireless Router can establish 2.4GHz 600Mbps and 5GHz 1.2Gbps connections simultaneously for 1.8Gbps of total available bandwidth , can easily support online HD video playback, 3D games and other high speed applications.

Features:

【Super Fast WiFi with the Latest WI-FI 6 Technology】The TY-6201 ax wifi router uses the latest Wi-Fi 6 (802.11ax) standard to provide 4x increased data capacity to get ultra-fast wireless speeds, allow the router to provide industry-leading speeds of up to 600 Mbps on a 2.4GHz band and 1200 Mbps on a 5GHz band. An extremely powerful 1.8GHz 64-bit Tri-core processor powers through multiple complex tasks and demanding applications with ease. Provides greater network capacity and efficiency.
【UlTRA-STABLE and ULTRA-EFFICIENT WiFi PERFORMANCA】OFDMA technology enables efficient data scheduling so that more transmissions can be sent at the same time, this vast improvement in efficiency works for both uploads and downloads, reduced latency, and increased network efficiency. Comes with 4 Standalone RF FEM(Front End Module), extremely useful for latency sensitive applications such as virtual reality (VR), augmented reality (AR) and Internet of things (IoT) sensors.
【Connecting More Devices with MU-MIMO】With MU-MIMO, multiple users can access the router simultaneously without any decreases in bandwidth, boosts Wi-Fi data rates by 60%.TY-6201 vastly reduces device disconnects in the home to experience smooth VR or enjoy lag-free online gaming, vivid 4K and even 8K streaming. Next-Gen WiFi 6 is compatible with IPHONE 11 and all new IPHONE in the future, you will enjoy blazing-fast speeds without any lag.
【UNBEATABLE WIFI COVERAGE】4 * 5dBi high-performance antennas extend strong and reliable WiFi signals over larger area. Aggregate 4 Gigabit LAN ports and 1 Gigabit WAN ports concurrently for the Multi-Gig experience.Ideal for stadium venues, enterprises and anyone who needs to connect a lot of devices and needs coverage for a over 2500 square foot multilevel home. Whether your family is gaming in the basement or streaming videos by the pool, everyone enjoys ultra-fast wireless speeds.
【Backwards Compatible】The 802.11 AX router standard will serve as the speedier successor to the more versatile 802.11ac. It will also maintain backwards compatible with previous wireless standards (802.11a/b/g/n/ac), something 802.11ac won’t offer. Intelligently selects the fastest WiFi band for every device connection.

Main Components

Key Components
SOC Chipset	BCM6755
WiFi Chipset	BCM6755(2.4GHz) BCM6755(5GHz)
Flash Memory	Flash 2GBit, max
SDRAM for CPU	DDR3 2GBit，max
Console	Internal console port (4 pin)

Interfaces

l Power Supply : Power adapter ( 12V/1A )

l Ethernet Ports : Five (5) 10/100/1000 (1 WAN and 4 LAN) Gigabit Ethernet ports with auto-sensing technology；IEEE802.3 , IEEE802.3u

l Button : Reset Push Button 、WPS Push Button

l Ports : 4x LAN Ports , WAN Port , WPS Button , Reset Button , DC Port (12V) Power Button ( Looking from left to right )

l LED :1 for Power\Internet\WPS

WIFI Performance

2.4GHz （802.11ax，2*2）
Standard	2.4GHz: IEEE802.11ax/IEEE802.11n/IEEE802.11g/IEEE 802.11b
Antenna	Two (2) external antennas 5dBi
Connection rate	600Mbps
5GHz（802.11ax,2*2)
Standard	5.0GHz: 802.11ax/802.11ac/IEEE 802.11n/IEEE 802.11a
Antenna	Two (2) external antennas 5dBi
Connection rate	1.2Gbps

SoftWare Features

Feature Item	Feature	Detailed Description
Networking Protocols	802.1q/1p VLAN over RFC2684 bridge encapsulation
	PPPoE	Support AUTO,PAP,CHAP,MS‐CHAP authentication.Auto or static IP address assignment.
	PPPoE passthrough	Supports concurrent PPPoE clients inside the modem and PPPoE clients on the LAN devices.
	PPPoE filtering of non‐PPPoE packets between WAN and LAN	Support filtered non‐PPPoE packets.
	Auto clean up of remote stalled PPP sessions at BRAS
	IpoE	Support dhcp and static ip config
	Transparent bridging between all LAN and WAN interfaces
	WAN to WAN blocking in bridgemode
	Ethernet as WAN
Networking	Full Cone NAT
Networking	DMZ Host
ALGs	FTP
	TFTP
	SIP
	RTSP
	H.323
	Port Triggering
	PPTP
	IPSec/VPN and IPSec/L2TP
VPNs	IPSec VPN
	L2TP client
	PPTP client
Firewall/ Filtering	Stateful Inspection
	Denial of Service suppression	ARP, ARP, Ping, Ping of Death, Land, SYNC, Smurf, unreachable, teardrop, SYN flood, fragggle, echo.
	Packet filtering	PackPackets can be blocked based on interface, mac address, IP address, protocol, and port number.
	LAN side firewall	By default, LAN side firewall is disabled
Parental Control	Time of day usage restriction
Parental Control	URI/URL Filtering	Supports INCLUDE and EXCLUDE modes
QoS	IP/Bridge/802.1p
	Rate Control on upstream traffic
	Support SP, WRR,WFQ priority VLAN stacking (Q-in-Q)
Routing	RIP v1/v2	Enable RIP over multiple WAN interfaces
Routing	Policy Routing	Routes packets based on criteria other than destination IP address
IGMP	Proxy and snooping
	IGMP v2 and v3
	Support for IPv6
IPv6	IPv6 Ready Logo Certified
	IPv6 Firewall
	IPv6 capable apps	telnetd, ftpd, sshd, httpd
File systems	SquashFS	Filesystem used on NOR flash systems
	JFFS2	Filesystem used on NAND flash systems
	tmpfs	small read/write filesystem
	VFAT	For USB automount feature
	NTFS	For USB automount feature. Support for Unicode and files greater than 2GB requires a different toolchain.
DHCP Server	Support for multiple subnets
	Static IP lease
	DHCP relay
DHCP client
LAN services	Second IP address on LAN interface
DNS Proxy	Built in DNS server
DNS Proxy	Caching previous requests
WebUI	Protection against Cross Site Request Forgery attack
TR‐069	Digest Authentication, SSL and Basic Authentication, SSL and Digest Authentication
	Auto‐launch and exit‐on‐idle
	TR‐098
	TR‐098 profile support
	TR‐111 (part 1)
	TR‐140
	TR‐104
TR‐064
SNMP	v1/v2c agent
SNMP	MIB‐II
UPnP	Internet Gateway Device (IGDv1.0)
	Finite(24 hour) duration of virtual server entries created using UPnP	To protect against a scenario where a PC client creates a virtual server entry on the Broadband Router and then leaves the network without deleting the virtual server entry, virtual server entries created by UPnP has a maximum lifetime of 24 hours.
Security	Three level login(local admin, local user, remote support)
	Service access based on incoming interface and/or source IP address
	Automatic logout from CLI after inactivity
Audit and Logging	Send log to remote syslog server
