What is Heat Shrink branch off clip ?
Introduction: A branch-off clip is a mechanical device used in conjunction with heat-shrinkable closures or tubing sleeves to seal and secure branch points in cables. It is generally made of cast by aluminum alloy to sustain high temperature an coated with hot melt adhesive(EVA or PA) on the middle finger.
Here's how branch-off clips looks like?
Understanding Heat Shrink Branch Off Clips:
Sealing Power and Telecom Cable Branches:
- Purpose: Heat Shrink Branch Off Clips serve the crucial role of providing a strong and permanent environmental seal to cable branches.
- Functionality: These clips are ingeniously designed to separate the two cores of the cable emerging from the joint.
- Adhesive Layer: Their outer surface is coated with a hot melt adhesive layer, adding an extra layer of protection.
Sealing the Deal:
- Shrinking for Strength: During the joint's outer sleeve shrinking process, the adhesive layer melts, creating a robust bond that holds the two cable branches securely together.
- Waterproofing Shield: Beyond their bonding prowess, these clips act as formidable guardians, shielding the cable from water entry.
The Guardian's Role in Action:
Powerful Cable Protection:
- Robust Bonding: The melted adhesive forms a powerful bond, ensuring the longevity and reliability of the joint.
- Environmental Shield: Acting as a waterproof barrier, these clips fortify the cable against the infiltrating forces of water.
Why Heat Shrink Branch Off Clips Matter:
Innovation for Longevity:
- Durability: Heat Shrink Branch Off Clips play a pivotal role in enhancing the durability of cable joints.
- Preventing Water Damage: By sealing cable branches, these clips prevent water entry, a common adversary to cable integrity.
Dimensions of the Branch-off Clips:
ITEM |
APPLICABLE SIZE |
S |
43/8 |
M |
50/12-75/15 |
L |
92/25-122/30 |
XL |
160/55 and above |
Generally there are four types: Small, Medium, Large and Extra Large, dimensions are as below:
Small
Medium
Large

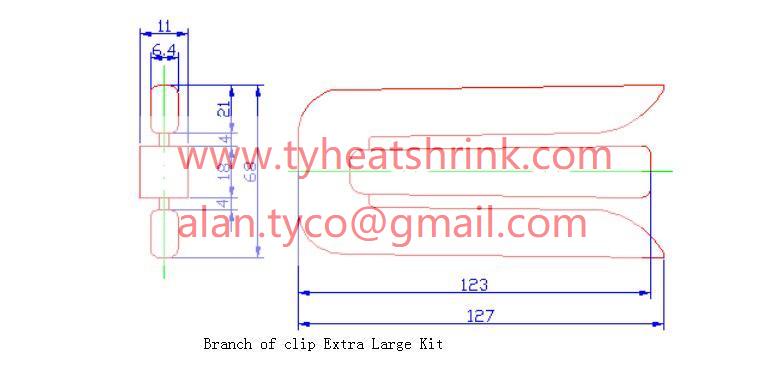

Extra Large
Applications:
The branch-off clips are typically employed when a single cable branches into multiple smaller cables, such as in telecommunications, power distribution, or other cabling applications. The clip helps ensure that the junction where the cables split remains sealed, protected from moisture, and mechanically stable.

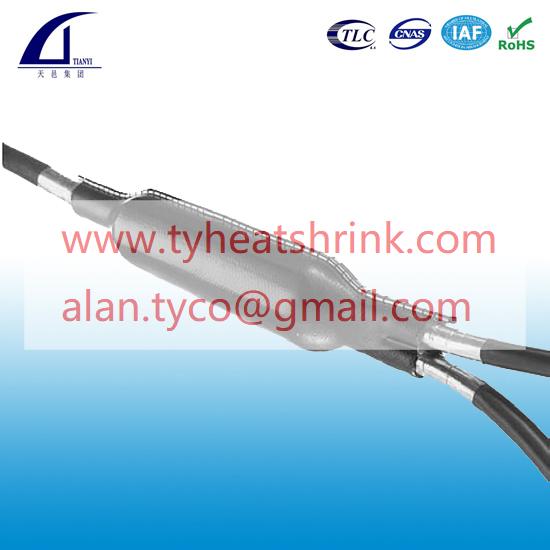

Here's an example of how branch-off clip is used while cable jointing and splicing.
About the Branch-off Kit.
Branch off kit is a abbreviated as BOKT. Generally, beside the branch-off clip, the branch-off kit(BOKT) is supplied with other accessories including:
- Aluminum tape
- Sand paper
- Cleaning tissue
- Grounding wire, also called shield continuity wire
- Cable tie
- Blue connector, also called shield continuity connector

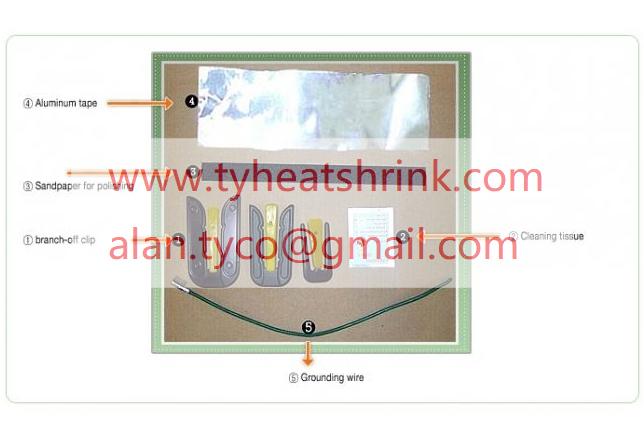

Here's a photo of BOKT accessories:
Conclusion: In the intricate landscape of cable joint protection, Heat Shrink Branch Off Clips emerge as unsung heroes, weaving a tale of durability, innovation, and steadfast protection. As cable networks evolve, these clips stand as guardians, ensuring that the heart of your cables remains shielded from environmental challenges.
