> FTTH faceplate fiber socket panel

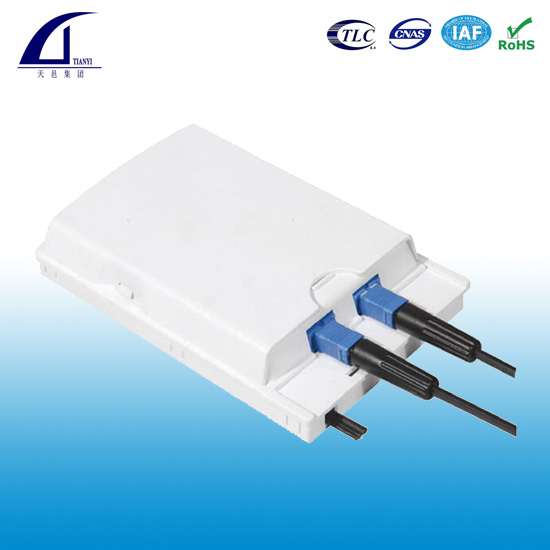

2 ports Fiber Optic Termination Box
- Max. Capacity:4 PLC or 2 Single Fiber
- Interface: SC or LC
- Material: ABS
- Application: Indoor
- Product description: GOM-A-2H 2ports Fiber Optic Termination Box,also called Fiber optic wall outlet plate, FTTH Socket Panel, FTTH Face plate,fiber face plate,fiber optical socket panel, is a type of FTTH terminal produc
Product introduction
2 ports Fiber Optic Wall Plate Outlet,also called faceplate-fiber-socket-panel.html target='_blank'>FTTH faceplate-fiber-socket-panel.html target='_blank'>Socket Panel, FTTH Face plate,fiber face plate,fiber optical Socket Panel, is a type of FTTH terminal products for FTTH indoor application. It is suitable for home or office to provide end users with optical access or data access.
Features:
Provide users with optical access or data access

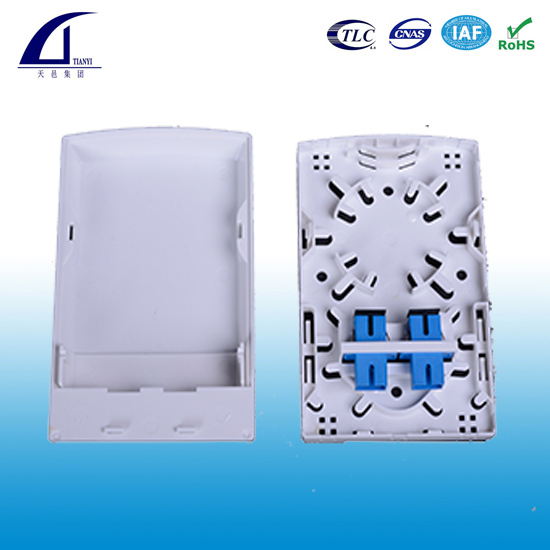

Store surplus fiber inside, easy for operation
Description:
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.Features:
- Scope of application 3.0 x 2.0 mm drop cable or indoor cable
- Fiber Cladding Diameter 125μm ( 652 & 657 )
- TBF Diameter 250μm & 900μm
- Applicable Mode Singlemode & Multimode
- Tensile strength >50 N
- Operating temperature -40~+85℃
- Adapter SC & LC
- Insertion loss ≤0.2dB(1310nm & 1550nm)
-
Insertion loss 2
Application:
Used in FTTH indoor application, home or work areaProvide users with optical access or data access
Store surplus fiber inside, easy for operation
Specifications:
|
Model
|
Size
|
Max Capacity
|
Installation Size
|
||
|
GOM-A-2H
|
W*L*H
|
SC
|
LC
|
PLC
|
D(mm)
|
|
83.4*130*24.1
|
2
|
4
|
4(LC)
|
159*80
|
|
We can also customize according to customer's specific requirement. Welcome to inquiry us.
