> FTTA Patch Cord

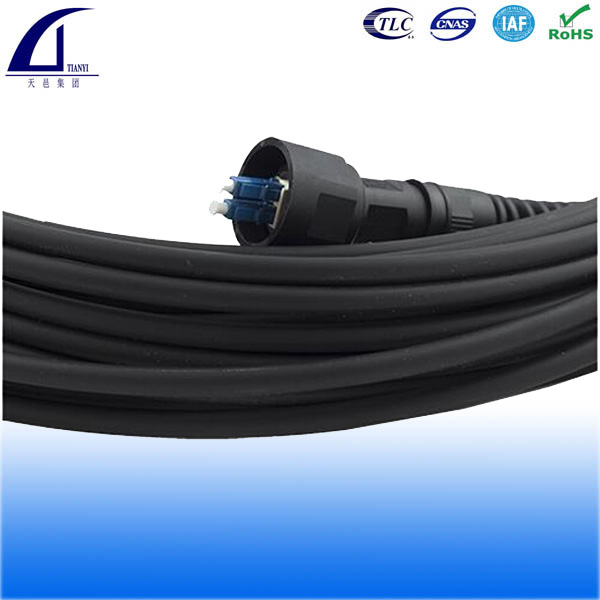

FTTA Outdoor Fiber Optic Patch cord
- Product description: FTTA Armored Fiber Patch cord is used for Fiber to the Antenna is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter. Custom products accept.
Product introduction

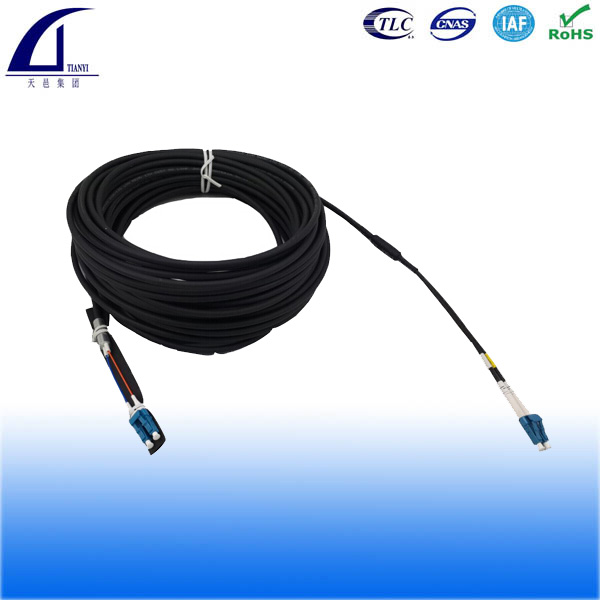

Fiber to the Antenna-FTTA RRU Armored Outdoor Patch cord
FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission fiber optic patch cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.

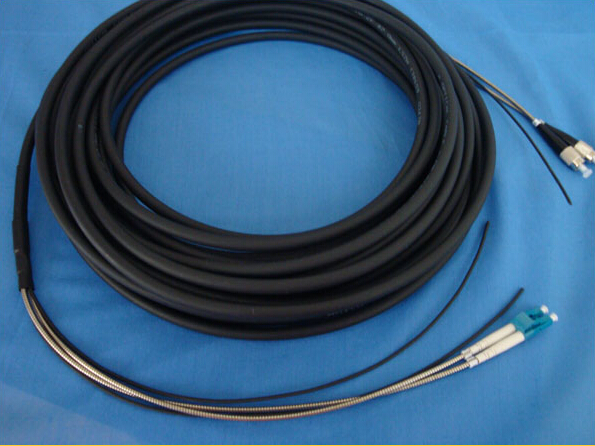

DLC/PC- DLC/PC Optical cable assembly Multimode GYFJH 2B4(LSZH), 7.0mm 2 cores, outdoor protected branch With armored tube.
Benefits of FTTA RRU Armored Outdoor Patch cord:
| Relative to Coax-Fed Antennas |
Relative to Homerun Architecture (Separate cables from each remote radio to the base station.) |
|---|---|
|
|
FEATURES
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- Duplex LC interface
- Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and single mode
- Water proof, dust proof and corrosion resistant
- Expansion to RJ45 and Power possible
- Plug has tolerance free design, fully free floating on Z-axis
- No Cable buckling during or after installatoin
- Cost effective metal die cast bulkhead
- Field installable version available
APPLICATIONS

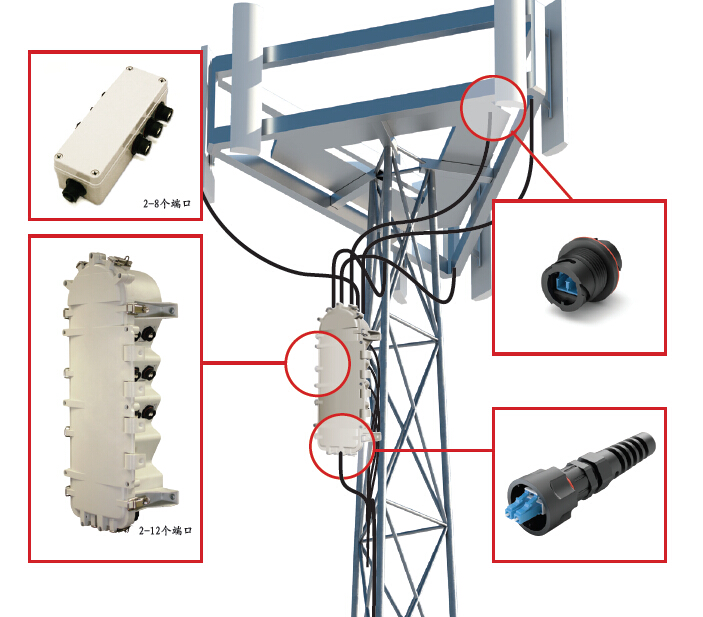

- WiMAX and LTE Base Stations
- Remote Radio Heads (RRH)
- Industrial outdoor applications
- Robotics
- Aerospace & Defense
