GJXFH-1B6 1 Fiber LSZH FTTH Drop Cable

1 Fiber Single-mode FRP Strength member Messenger Wire LSZH FTTH drop cable GJXFH-1B6 G.657A

Application

The FTTH drop cables,also called FTTx drop cables, are manufactured with flame retardant jacket and supporting wire. The strengthen members inside the cables are used for supporting the whole cables while installation from building to building. It is easy to pull the fibers out from the FTTH drop cables because of its special structure. The FTTH drop cables are ideal for both indoor and outdoor installation.

Two parallel fiber reinforced plastics are placed at the two sides, the cable is completed with LSZH sheath. Single steel wire as additional strength member ensuring good performance of tensile strength. It is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.

Item details

Fiber Count: 1 Fiber
Fiber Type: Single-mode G.657A
Strength Member: FRP (fiber reinforced plastics)

Features

• Two parallel fiber reinforced plastic as the strength member ensures good performance of crush resistance to protect the fiber.
• Environmental protection- Low smoke, zero halogen and flame retardant sheath.
• Single steel wire as additional strength member ensuring good performance of tensile strength and self-supporting.
• Simple structure, light weight.

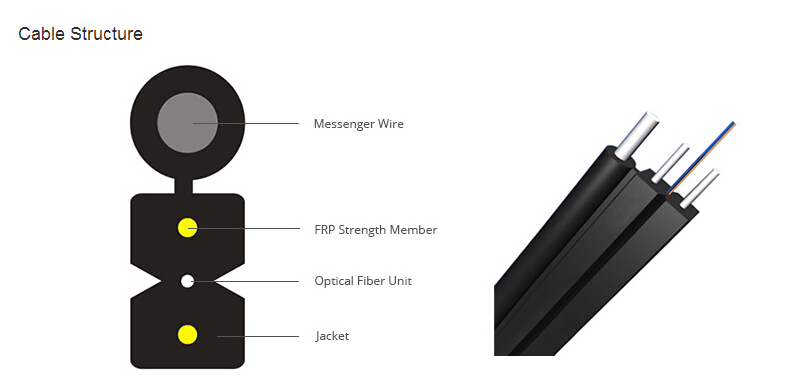

Cable structure
