> Fiber Optic Distribution Box

GFT 36 cores Fiber Optical Distribution Box

Material:ABS
Max. Capacity: 32 cores
IP Rating: IP 68
Weight: 1.8KG/PC
Product description: high density 2 in 2 out GFT 36cores fiber optical distribution box accommodating 1x2,1x4,1x8 and 1x16 splitters from Sichuan Tianyi Comheart Telecom Co., Ltd
Inquiry

Product introduction

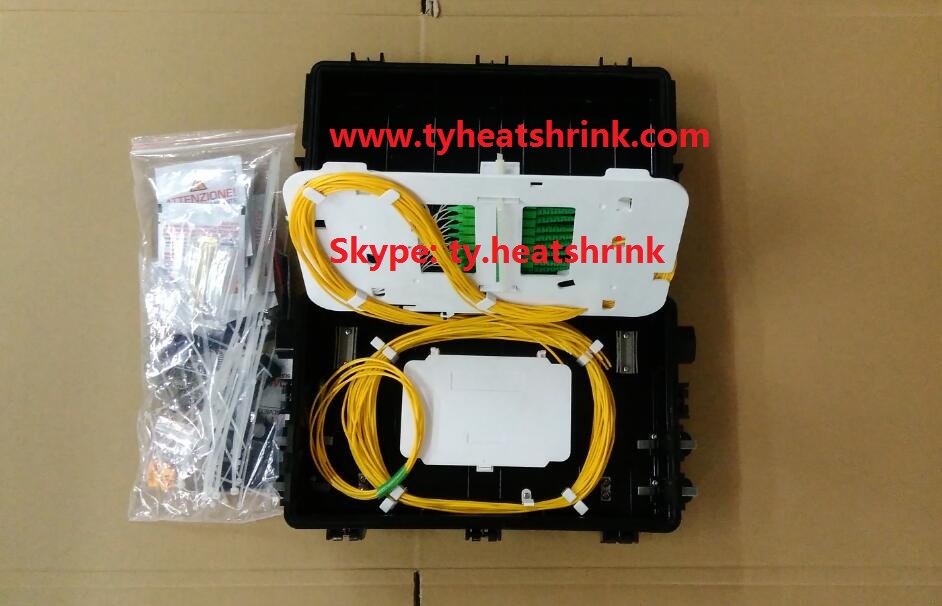

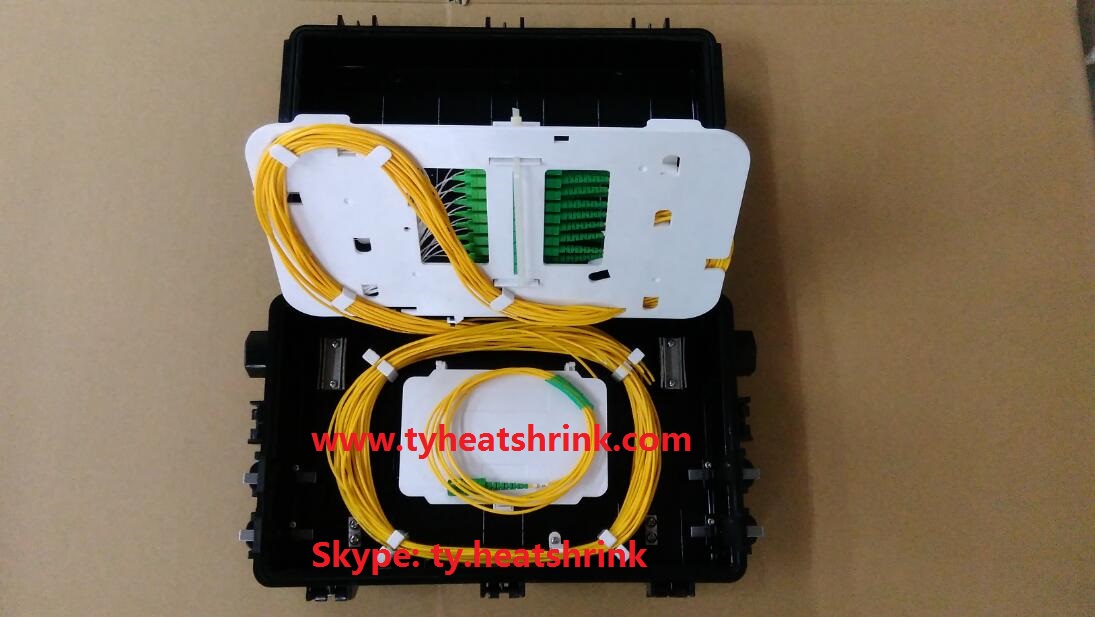

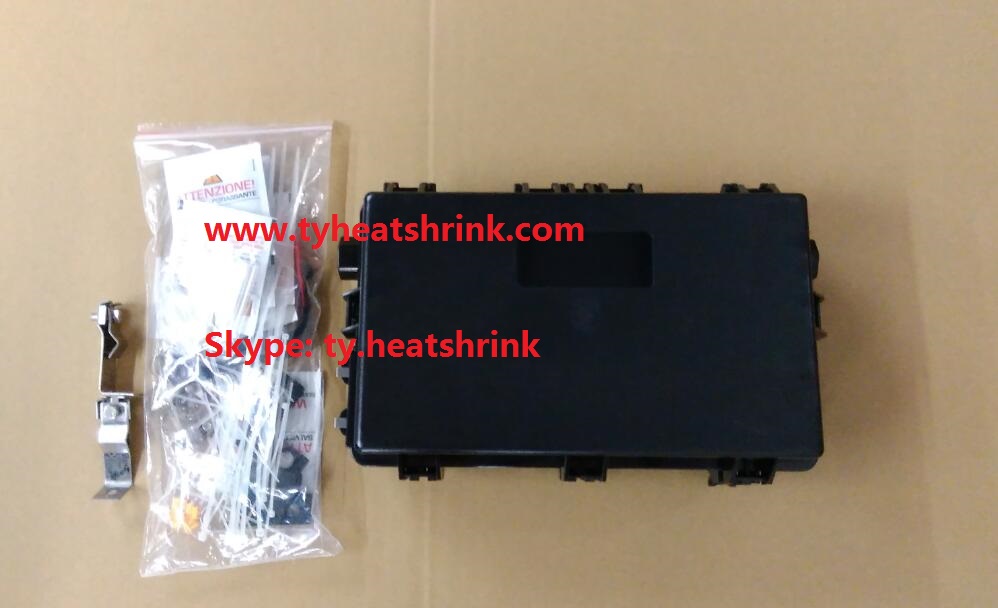

GFT 36cores Fiber Optical Distribution Box(ODB),Fiber Optic Distribution Box(FDB) directly from Fiber Optical Distribution Box(ODB) & Fiber Optic Distribution Box(FDB) factory,supplier and manufacturer. It is a high-density 2-in-2-out fiber box solution designing with a compact size of 340x220x100mm. the cabinet accommodates 1x2,1x4,1x8 and 1x16 etc.splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16 3mm cables.

2.Specifications

Dimension(LxWxH)	340x220x100mm
Cable entries	4 ports dia 9-16mm
Splicing Tray	12/24 fiber per tray
Max.capacity	32 cores
Material	ABS
No. of Adapter	Max. SC/APC Adapter 32pcs
IP rating	IP68
Package	8pcs/cartons carton size :650370580
weight	1.8kg/pcs

3.Parts

About the SC/APC Fiber Optic Adaptor

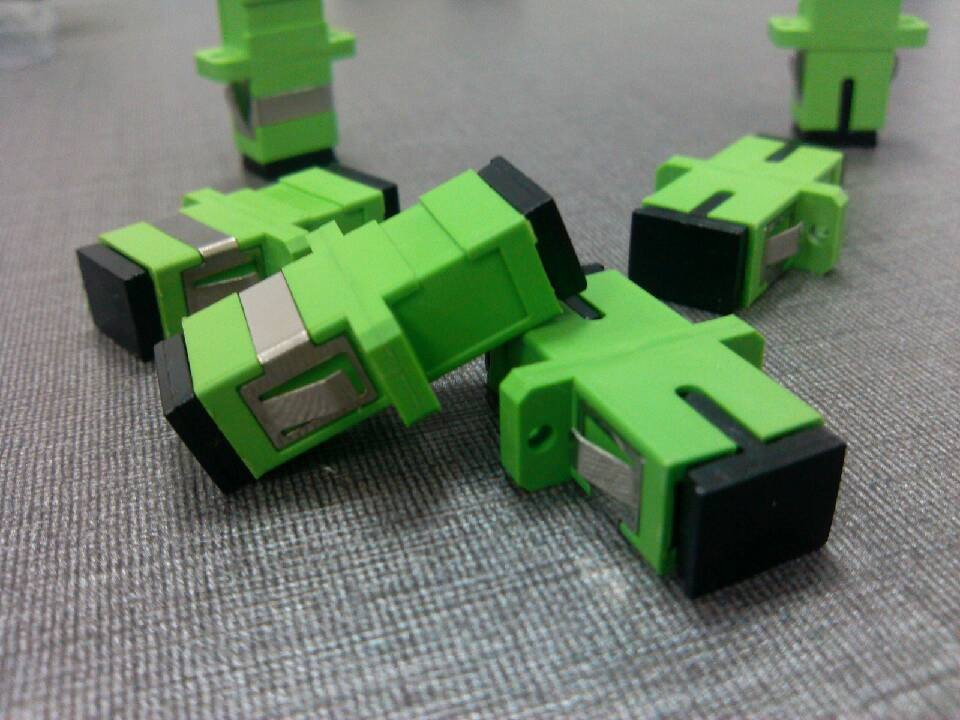

fiber optic SC/APC adapter

Parameter	Unit	Description
Insertion Loss (Typical)	dB	≤0.2
Return Loss	dB	PC≥45	UPC≥50	APC≥60
Mechanical endutance(500T)	dB	≤0.2
Exchangeability	dB	≤0.2
Operating Temperature	°C	-40~+75
StorageTemperature	°C	-40~+85
Relative Humidity	%	95

About the PLC bare splitter:

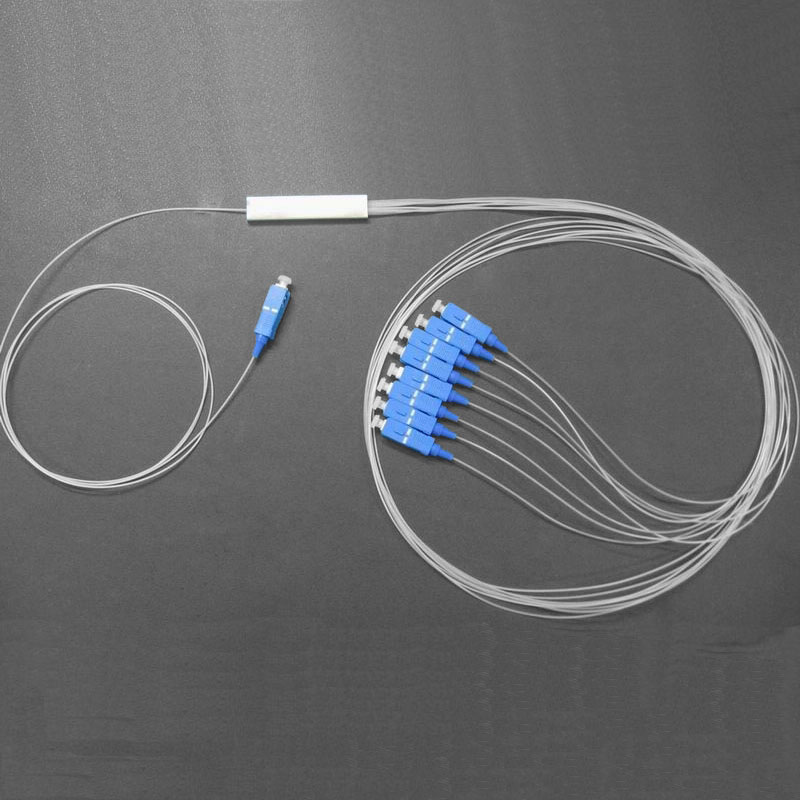

1*8 Optical PLC Splitter

1xN SC/APC PLC Splitter Specification
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8	7.1	10.2	13.5	16.5	20.5	23.8
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)			55
Operating Temperature			-40~+85
Directivity (dB)			≥ 55
Storage Temperature			-40~+85

Ordering information

Type	Dimension	Max splitting	Capacity of splice tray	Max qty of splice tray	Max capacity (core)
GFT-SC8	340x220x100mm	1:8(1PCS)	24 cores	1	8C
GFT-SC16		1:16(1PCS) 1:8(2PCS)		2	16C
GFT-SC32		1:16(2PCS) 1:32(1PCS)		3	32C
