Outdoor Optical Cross Connect Cabinet - 副本

Product description: The Outdoor Optical Cross Connect Cabinet is widely used for cross-connecting of outdoor fiber optical cables. It offers ideal environment for fibers to be spliced and stored in outdoor environment.
Inquiry

Product introduction

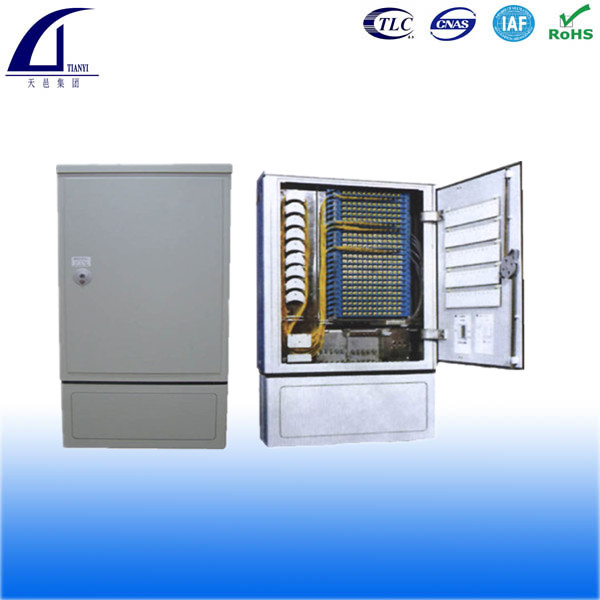

GP05 Outdoor Optical Cross Connection Cabinet

Catalog Download(GP05W)

The GP05 Outdoor Optical Cross Connect Cabinet is widely used for cross-connecting of outdoor fiber optical cables. It offers ideal environment for fibers to be spliced and stored in outdoor environment.

Descriptions:

Stainless steel plate body ensures excellent performance of anti-erosion, aging resistance and pleasing appearance.

The cabinet has functions of cable termination, as well as fiber distribution, splice, storage and dispatch.

Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.

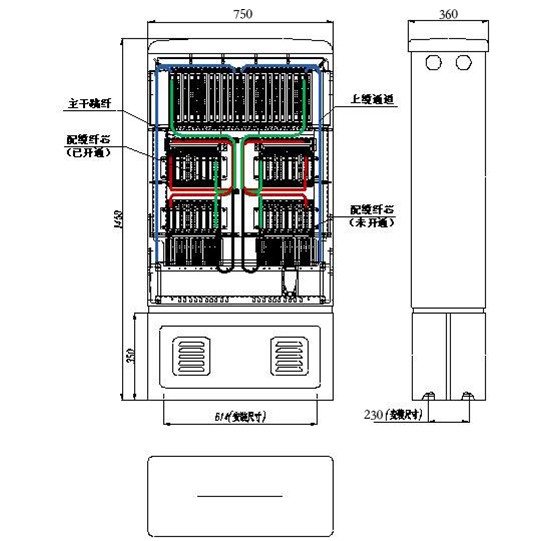

Structure of cabinet: Double-layered with round angles, single-door cabinet.

Excellent waterproof and dustproof performance.

Lock provided on every cabinet ensures the safety of the fibers.

Multi-functions – various types of LongXing Distribution Units (DU) are available for making different combinations.

Disc-shaped direct splice tray (12-24 cores/ tray) is adopted can be used for direct splicing.

Accommodates SC, FC and LC and ST adapters.

Earth protection provided for every incoming optical cable.

Environment conditions:

Temperature: -40℃ ~+ 60℃

Relative Humidity: ≤95% (at 40℃)

Cable Entrances: 2 In 2 Out

Atmospheric pressure : 70kPa ~ 106kPa

Technical Specifications:

The protection grade reaches IP65.

Working with wavelength of 850nm, 1310nm and 1550nm.

Pressurization between the frame high voltage protection earth device and the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.

Insulation resistance between the frame high voltage protection earth device and the frame: ≥20,000MΩ/ 500V (DC).

Each surface of the cabinet can bear a vertical pressure over 980N.

The outermost part of the door can bear a vertical pressure over 200N when the door is open.

The fixing position of cable can bear an axial tensile force 1000N, as well as three times of recyclable torsion of ±90°.

Mechanical durability: No damage for all connectors and adaptors after 500 mating times.

The curvature radius: >40mm.

Note: The part number above are for the cabinet only, DU / Adapter / Pigtail and other relevant accessories are not included. Please state clearly what accessories are needed when requesting quotations or placing orders, see individual catalogs for ordering details of the accessories.
