Fiber Dome Closures-FOSC-400

Quick Details

• Place of Origin: Sichuan, China (Mainland)
• Brand Name: Tianyi
• Model Number: GP03Z-A
• Life expectancy: 25 years
• Material: ABS/PC
• Operating Temperatures: -10°C~+70°C
• Certificates: ISO9001,CE,RoHS
• Water & Dust Proof: IP68
• Working Pressure: 70~106Kpa

Packaging & Delivery

Sichuan Tianyi Comheart Telecom Co., ltd. was established in 2001 with a registered capital of 72 million RMB and occupies nearly150,000 square meters with more than 1500 employees. The company is one of the leading manufacturers specialized in developing, producing and marketing of telecommunication network equipment. Tianyi enjoys a long history in manufacturing a wide of variety FTTH equipment and have won good reputation in China telecommunication industry.

Fiber Dome type Closure(FOSC) Brief Introduction:

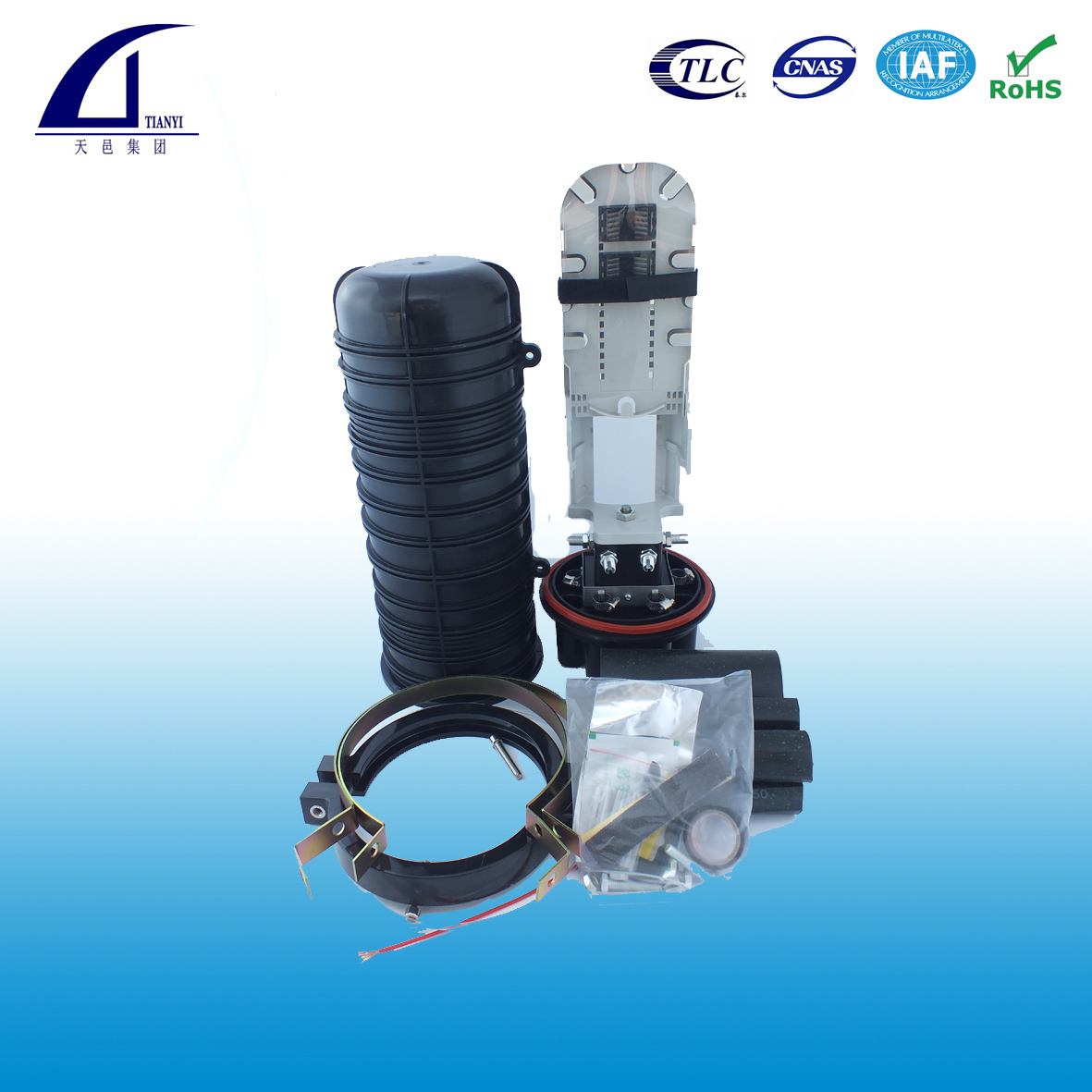

GP03Z fiber optic splice closure is the columnar structure of dome design, which provide with six fiber cable in-out ports ( 4 round ports and 1 elliptical port). The optic splice closure can be used in aerial and underground application, it is made from quality ABS engineering plastic. The cover and the base of the fiber optic splice closure are filled with silicon rubber and sealed with hoop, the entry port are sealed with heat shrinkable tube. Our fiber optic splice closure can be opened after sealing and can be reused without changing sealing material. The fiber optic splice closure is applied for outdoor aerial cable, pole and wallboard, and it can seal and protect the splices efficiently.

Features:

• 1. FeaturSound mechanical performance, severe weather resistance, being sturdy and durable: By adoption of high quality polypropylene together with thermal aging additive. ( GP03Z Fiber Optic Splice Closure )
• 2. Comprising reliable components to anchor the strength members secure the cable sheath and provide sheath continuity, etc. (GP03Z Fiber Optical Splice Closure)
• 3. Each fiber containing plate can be rotated to 90°. ( GP03Z Fiber Optic Splice Closure )
• 4. The fiber optical splice closure has 4 round cable ports and 1 elliptical cable port in the enclosure bottom, which can permit4 φ12-φ17 cables and 2 φ12-φ22 cables in and out. ( GP03Z Fiber Optic Splice Closure )
• 5. The fiber optical splice closure can be used for single core fiber and ribbon fiber according to the customer’s requirements. ( GP03Z Fiber Optic Splice Closure )

Main Technical Parameters:

• 1. Applicable environment temperatures of the fiber optical splice closure : -10℃~+70℃
• 2. Air pressure of the fiber optical splice closure : 70~106Kpa
• 3. Pull-out strength≥1000N, compressive force to shell ≥2000N , impact: 16N.m
• 4. Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)
• 5. Tightness of the fiber optical splice closure : no pressure drop within the enclosure pressurized to 60Kpa at 60℃ for 100 hours
• 6. Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
• 7. Life expectancy of the fiber optical splice closure : 25 years

Capacity of the Fiber Optic Splice Closure:

Remarks:

The ribbon fiber cable has 12 cores each ribbon. If the user use 8 cores, 6 cores and 4 cores ribbon cable, the nos. of ribbon cables can be added on the condition that installation can be managed easily. ( GP03Z Fiber Optic Splice Closure )

To save your time and improve our efficiency of quotation, please follow our Buying Guide to provide the model number as below.
