> Fiber Fusion Protection Sleeves
60mm fiber fusion splice protector sleeve
- Product description: 40mm 50mm 60mm fiber fusion splice protector sleeves factory supplies standard and custom fusion splice protectors,heat shrink protection sleeves,fiber fusion splice protection sleeves.
Product introduction

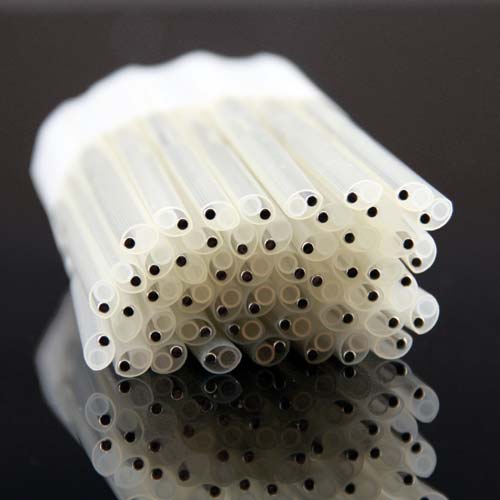

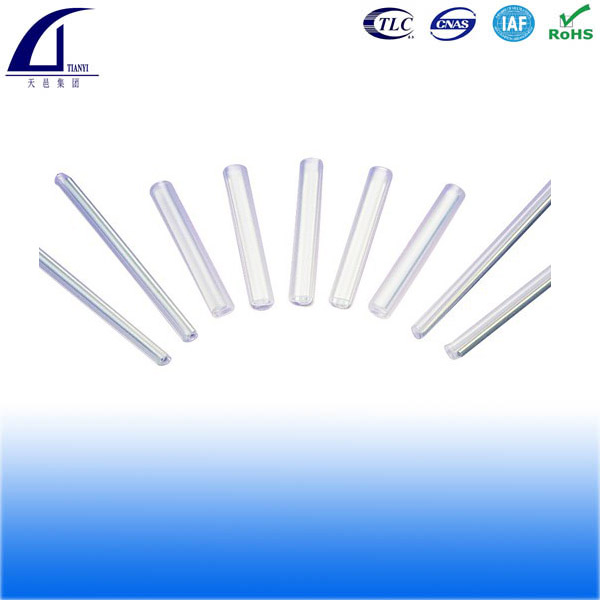

Optical Fiber Fusion Splice Protector Sleeve-60mm optical fiber cable splice protector sleeves (100 Pack)
Product description:
Heat shrinkable optical fiber fusion splice protector sleeve, also called heat shrink protector sleeve,optical fiber protector sleeve, optical fiber splice protector,with a steel rod (ceramic rod for ribbon fiber) for mechanical protection and a hot fusion insert for sealing.
This optical fiber splice protector sleeve provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable.
Features:
- -Reinforces and protects fiber optic splice
- -Stainless Steel Rod
- -Clear sleeve for easy inspection and minimizing damage during installation
- -One piece design with hot fusion insert for sealing against moisture and other contaminants
- -Different colors of hot fusion insert for labeling and identification
- -RoHS compliant halogen free, environmentally friendly
Parameters:
-Color Sleeve: Transparent
-Length: 3.0 mm x 60 mm
-Stainless Rod: 1.2*55mm
-Retains optic transmission properties of optical fiber
Temperature Range:
-Operating Temperature: 55C to 100C
-Shrink Temperature: 120C
Packaging details:
100pcs per small pvc bag
20 small bags=2000pcs per big pvc bag
25000 PCs/CTN
Weight: 20 KGs/CTN
Standard and customized optical fiber fusion splice protection sleeves available.
Ordering information:
|
P/N |
Heat Shrinkable Tube(mm) |
Hot Melt Tube(mm) |
Steel Rod(mm) |
Packing |
||||||||
|
Outer Dia. (±0.1) |
Wall Thickness (±0.05) |
Length (±0.5) |
Material |
Outer Dia. (±0.1) |
Wall Thickness (±0.05) |
Length (±0.5) |
Material |
Outer Dia. (±0.1) |
Length (±0.5) |
Material |
||
|
S6015 |
4.0 |
0.25 |
60 |
EVA |
2.4 |
0.45 |
60 |
EVA |
1.5 |
55 |
Stainless Steel 304 |
100PCs/Bag |
|
S6012 |
3.5 |
0.25 |
60 |
EVA |
2.0 |
0.35 |
60 |
EVA |
1.2 |
55 |
||
|
S6010 |
2.7 |
0.25 |
60 |
EVA |
1.4 |
0.35 |
60 |
EVA |
1.0 |
55 |
||
|
S5515 |
4.0 |
0.25 |
55 |
EVA |
2.4 |
0.45 |
55 |
EVA |
1.5 |
50 |
||
|
S5512 |
3.5 |
0.25 |
55 |
EVA |
2.0 |
0.35 |
55 |
EVA |
1.2 |
50 |
||
|
S5510 |
2.7 |
0.25 |
55 |
EVA |
1.4 |
0.35 |
55 |
EVA |
1.0 |
50 |
||
|
S5015 |
4.0 |
0.25 |
50 |
EVA |
2.4 |
0.45 |
50 |
EVA |
1.5 |
45 |
||
|
S5012 |
3.5 |
0.25 |
50 |
EVA |
2.0 |
0.35 |
50 |
EVA |
1.2 |
45 |
||
|
S5010 |
2.7 |
0.25 |
50 |
EVA |
1.4 |
0.35 |
50 |
EVA |
1.0 |
45 |
||
|
S4515 |
4.0 |
0.25 |
45 |
EVA |
2.4 |
0.45 |
45 |
EVA |
1.5 |
40 |
||
|
S4512 |
3.5 |
0.25 |
45 |
EVA |
2.0 |
0.35 |
45 |
EVA |
1.2 |
40 |
||
|
S4510 |
2.7 |
0.25 |
45 |
EVA |
1.4 |
0.35 |
45 |
EVA |
1.0 |
40 |
||
|
S4015 |
4.0 |
0.25 |
40 |
EVA |
2.4 |
0.45 |
40 |
EVA |
1.5 |
35 |
||
|
S4012 |
3.5 |
0.25 |
40 |
EVA |
2.0 |
0.35 |
40 |
EVA |
1.2 |
35 |
||
|
S4010 |
2.7 |
0.25 |
40 |
EVA |
1.4 |
0.35 |
40 |
EVA |
1.0 |
35 |
||
|
S3515 |
4.0 |
0.25 |
35 |
EVA |
2.4 |
0.45 |
35 |
EVA |
1.5 |
30 |
||
|
S3512 |
3.5 |
0.25 |
35 |
EVA |
2.0 |
0.35 |
35 |
EVA |
1.2 |
30 |
||
|
S3510 |
2.7 |
0.25 |
35 |
EVA |
1.4 |
0.35 |
35 |
EVA |
1.0 |
30 |
||
