> Fiber Optic PON PLC Splitters

1x8 Blockless PLC splitter

Insertion loss: ≤10.4dB
Return Loss: ≥55dB
Working Temperature:-40℃~+85℃
Wave Length:1260nm~1650nm
Product description: 0.9mm 1X8 blockless Fiber Optic PLC splitter-SC/APC connector,in mini tube manufactured by China TOP 3 Fiber Optic PLC splitter factory & supplier, which is used to for FTTH & FTTX application.
Inquiry

Product introduction

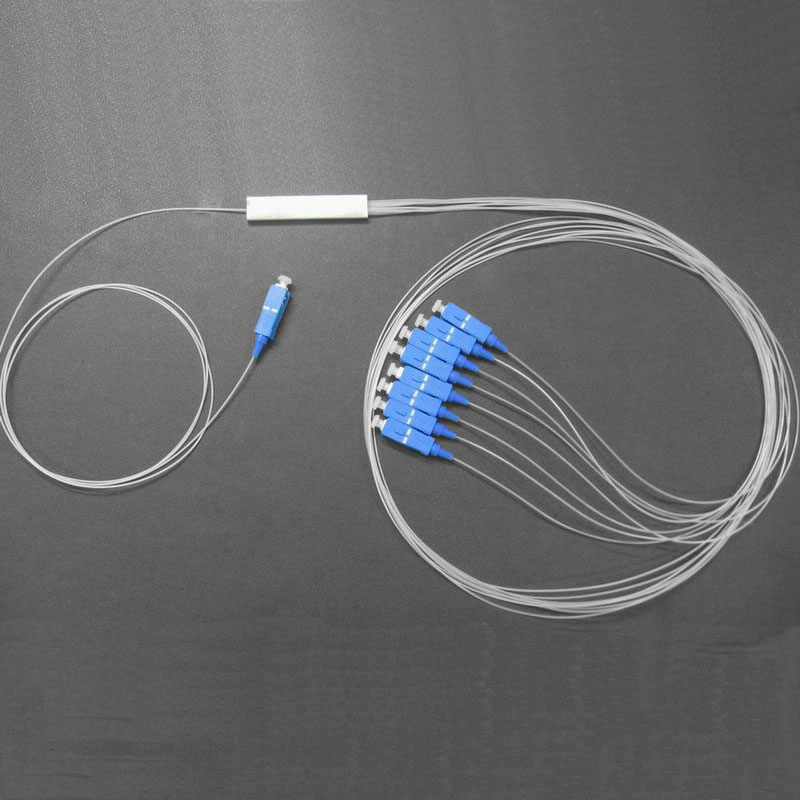

1x8 PLC Splitter, G.657A1 Fiber,0.9mm in & out-SC/APC connector

Introduction:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Tianyi

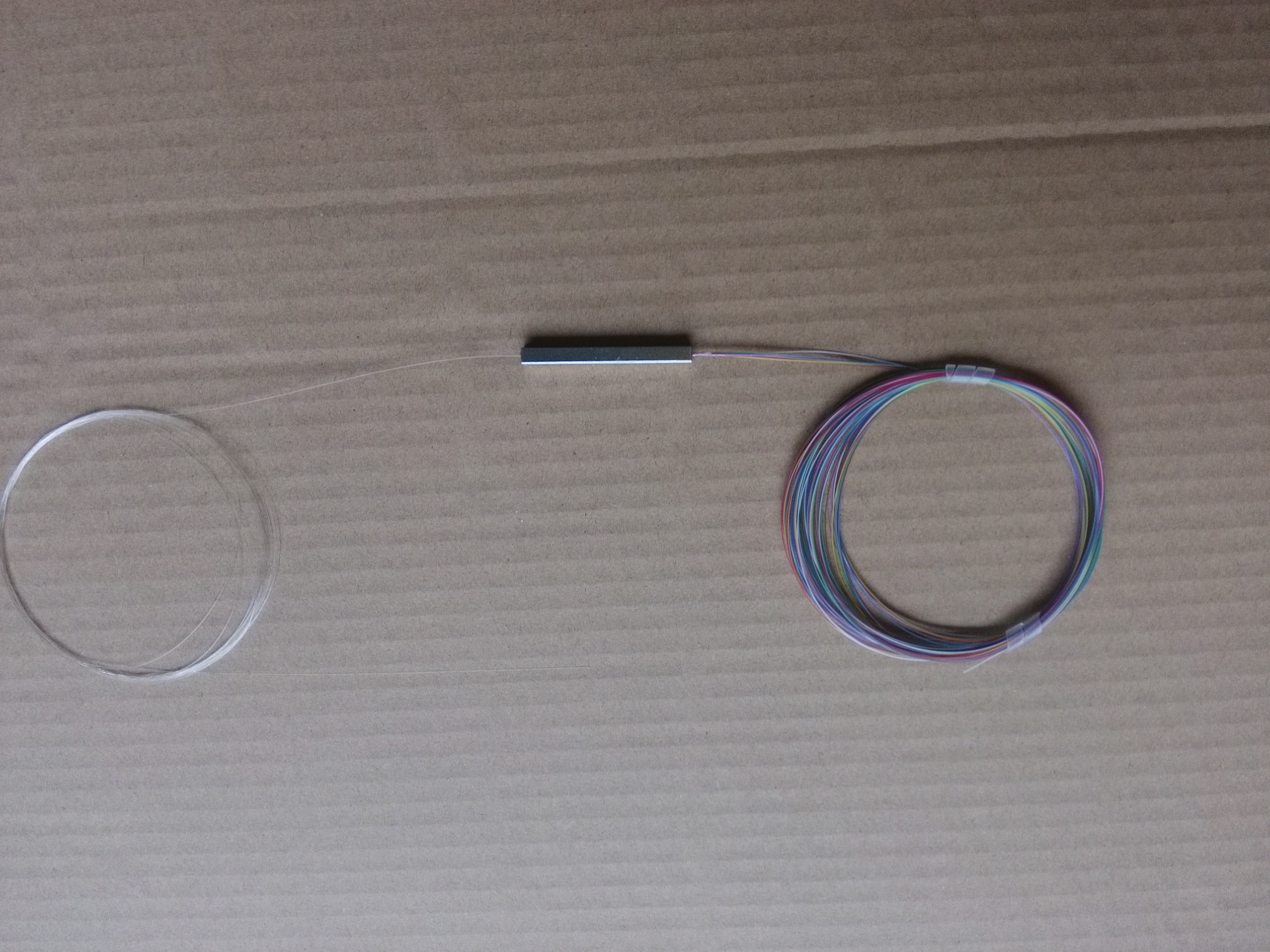

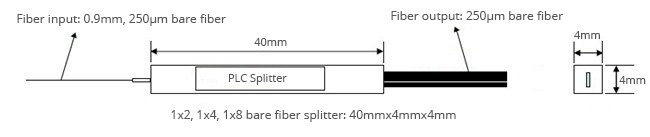

offers a variety of bare fiber type PLC splitters. The bare fiber PLC splitters can be easily placed in a formal joint box or fiber optic splice closures. The bare fiber PLC splitters generally come with 250um bare fiber or 900um buffered fiber with or without connectors. We

provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features:

Low Insertion Loss
Low PDL (Polarization Dependent Loss)
Compact Design
High Reliability and Stability
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40°C tp 85°C

Applications:

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

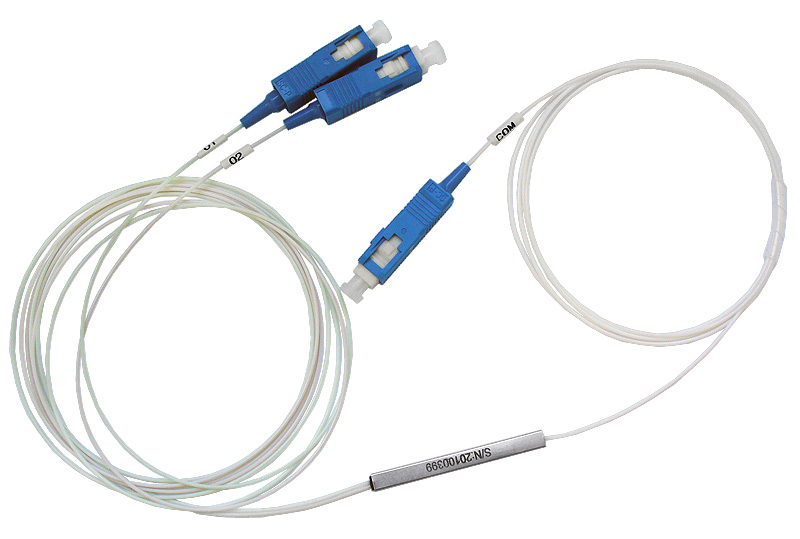

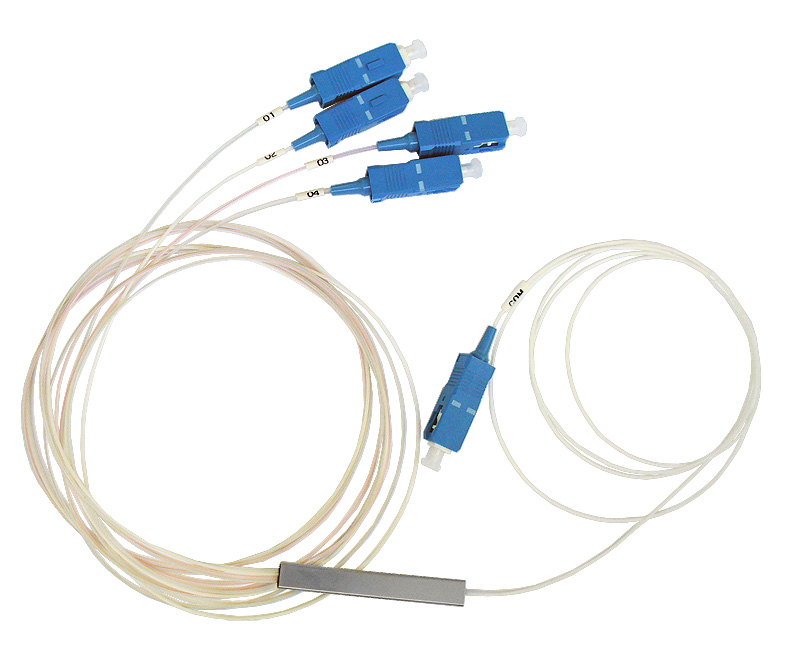

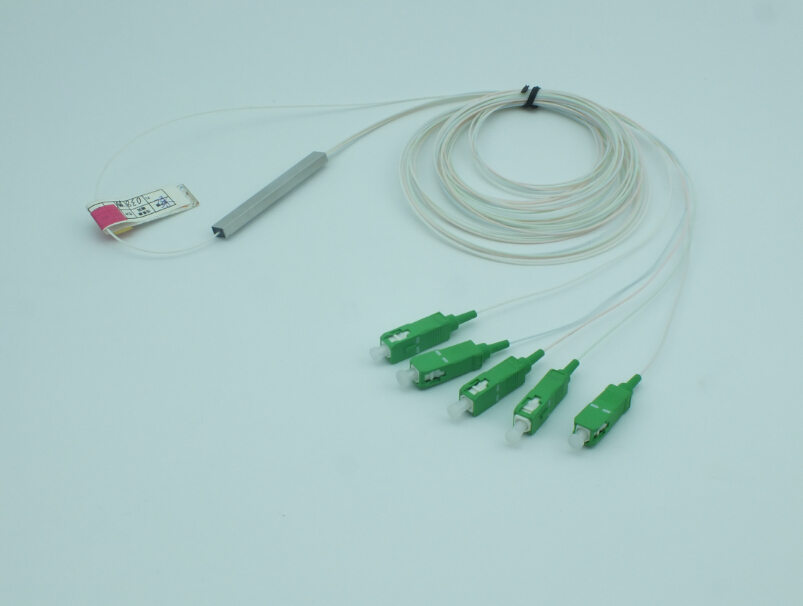

1×N & 2×N Mini Tube PLC Splitters

PLC Splitter is based on the Planar Waveguide Technology. It provides a low cost power distribution solution with small form factor and high reliability.

Features

l Low Insertion loss

l Low PDL

l High Return Loss

l Uniform Power Splitting

l Compact Design

l Wide Operating Wavelength

l Wide Operating Temperature

l Excellent Environmental & Mechanical Stability

l Qualified Under Telcordia GR-1221 and GR-1209

Applications

l FTTX (FTTB, FTTH, FTTC)

l Passive Optical Networks (PON)

l Local Area Networks (LAN)

l CATV Systems

l Test Equipments

Specifications(1×N Splitters):

Parameter		Unit	Value
Product Type			1×2	1×4	1×8	1×16	1×32	1×64
*Size(mm) LWH*			6074			60124	80206	100406
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	4.1	7.4	10.5	13.8	17.1	20.5
	Max.		4.4	7.7	11.0	14.2	17.5	21.0
Uniformity (Max.)		dB	0.5	0.8	0.8	1.0	1.5	2.0
PDL(Max.)		dB	0.3					0.5
Directivity (Min.)		dB	55
TDL(Max.)		dB	0.5
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Pigtail Diameter		mm	0.9
Pigtail Length		M	Custom length
Connector			FC/UPC,SC/UPC,LC/UPC, FC/APC,SC/APC,LC/APC or customized

Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

Specifications(2×N Splitters):

Parameter		Unit	Value
Product Type			2×2	2×4	2×8	2×16	2×32	2×64
*Size(mm) LWH*			60124			80206		100406
Operating Wavelength		nm	1260~1650
Insertion Loss	Typ.	dB	4.4	7.7	10.8	14.1	17.4	20.8
	Max.		4.7	8.0	11.3	14.4	17.8	21.3
Uniformity (Max.)		dB	0.5	0.8	0.8	1.0	1.5	2.0
PDL(Max.)		dB	0.3					0.5
Directivity (Min.)		dB	55
TDL(Max.)		dB	0.5
Return Loss		dB	≥55(APC type connectors) / 50(UPC type connectors)
Pigtail Diameter		mm	0.9
Pigtail Length		M	Custom length
Connector			FC/UPC,SC/UPC,LC/UPC, FC/APC,SC/APC,LC/APC or customized
