Branch Off Kit-BOKT
- Product description: Branch Off Kit-BOKT include branch off clip,Aluminum tape,Sand paper ,Cleaning tissue,Grounding wire for heat shrinkable closures.
Product introduction
Branch Off Kits-branch off clips for heat shrinkable joint closure system
Branch Off Kits Description:
Branch off kits are designed for branching cables of heat shrinkable closures. The three types of Branching kits (BOKT) cover all sizes of cables. Three-finger construction helps in perfect branching and reliable sealing, as the middle finger is coated with hot melt adhesive. It is supplied in kit form with all necessary components for branching.
One Branching kit (BOKT) is required for branching two cables at one end.

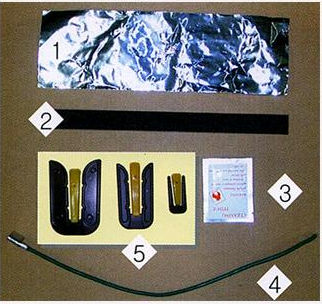

Branch Off Kits Accessories:
- Aluminum tape
- Sand paper
- Cleaning tissue
- Grounding wire
- Branch off clip(Large, Medium, Small)
Description |
Size mm |
For Communication cable |
Note |
Small |
65*28 |
Less than 200 |
There two kinds of branch off clip for every size:the regular size for RSB series wraparound heat-shrinkable sleeves for non-pressurized telecommunication cable, the intensive size for the RSBA series wraparound heat-shrinkable closures. |
Medium |
85*40 |
200-400 |
|
Large |
104*59 |
400-600 |
|
Extra Large |
127*68 |
More than 600 |
- It protects the connecting part in safety and is applied easily to the outer diameter of various telecommunication cables because of superior shrinkage ratio.
- Valve of Pressurized type is convenient when filling or measuring gas.
- It can bear up well against Gasoline, Acid and Alkali and also prevents the water penetration.
- Best quality, long lasting and resistibility against impact.
- According to the step of installation, the White Line at the sleeve rail will be disclosed and because thermo sensitive paint is spread on the sleeve, the color is changed as the temperature.
Application Table per Cable Sizes.
Wire / Pairs Dia. | 0.4mm | 0.5mm | 0.65mm | 0.9mm |
25 | 43/10-200 | 43/10-200 | 43/10-200 | 43/10-200 |
50 | 62/15-350 | 62/15-350 | ||
75 | 62/15-350 | 62/15-350 | ||
100 | 62/15-500 | 62/15-500 | ||
200 | 62/15-500 | 62/15-500 | 92/30-500 | |
300 | 92/30-500 | |||
400 | 92/30-500 | 92/30-500 | 122/38-500 | |
600 | 122/38-500 | 160/55-500 | ||
900 | 122/38-500 | 122/38-500 | 160/55-500 | 200/65-500 |
1200 | ||||
1500 | 160/55-500 | 200/65-500 | ||
1800 | 160/55-500 | |||
2100 | 200/65-500 | |||
2400 | ||||
2700 | 200/65-500 | |||
3000 | ||||
3200 | ||||
3600 |
