TY6332 AX3600 WiFi 6 Router

Tianyi TY6332 AX3600 triple band Wi-Fi 6 Router

Product Descriptions

Tianyi TY6332 AX3600 triple band Wi-Fi 6 Router is designed on latest Wi-Fi technology Next-Gen WiFi 802.11ax certified by Wi-Fi Alliance, offering 1.8Gbps for 5G high band, 1.2Gbps for 5G low band and 600Mbps for 2.4G band connections simultaneously for 3.6Gbps of total available bandwidth , can easily support online HD video playback, 3D games and other high speed applications.

Features:

• 【Super Fast WiFi with the Latest WI-FI 6 Technology】The TY-6332 ax wifi router uses the latest Wi-Fi 6 (802.11ax) standard to provide 4x increased data capacity to get ultra-fast wireless speeds, allow the router to provide industry-leading speeds of up to 600 Mbps on a 2.4GHz band and 1200 Mbps on a 5GHz low band and 1800 Mbps on 5GHz high band. An extremely powerful 3.6GHz 64-bit Tri-core processor powers through multiple complex tasks and demanding applications with ease. Provides greater network capacity and efficiency.
• 【UlTRA-STABLE and ULTRA-EFFICIENT WiFi PERFORMANCA】OFDMA technology enables efficient data scheduling so that more transmissions can be sent at the same time, this vast improvement in efficiency works for both uploads and downloads, reduced latency, and increased network efficiency. Comes with 4 Standalone RF FEM(Front End Module), extremely useful for latency sensitive applications such as virtual reality (VR), augmented reality (AR) and Internet of things (IoT) sensors.
• 【Connecting More Devices with MU-MIMO】With MU-MIMO, multiple users can access the router simultaneously without any decreases in bandwidth, boosts Wi-Fi data rates by 60%.TY-6332 vastly reduces device disconnects in the home to experience smooth VR or enjoy lag-free online gaming, vivid 4K and even 8K streaming. Next-Gen WiFi 6 is compatible with IPHONE 11 and all new IPHONE in the future, you will enjoy blazing-fast speeds without any lag.

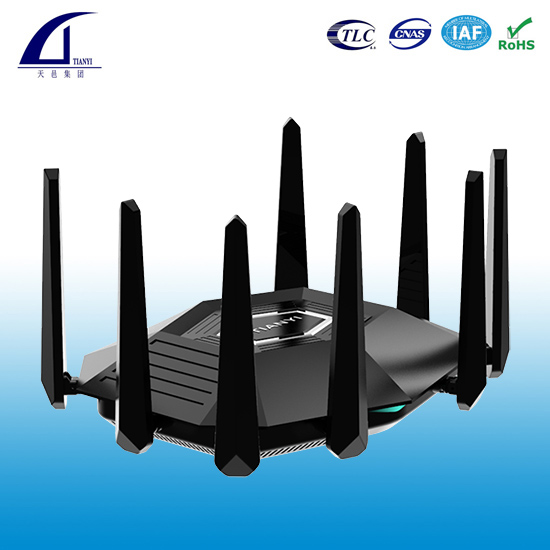

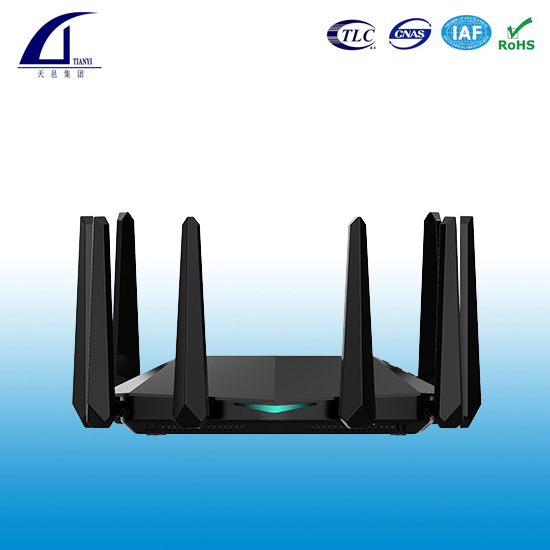

• 【UNBEATABLE WIFI COVERAGE】8 * 5dBi high-performance antennas extend strong and reliable WiFi signals over larger area. Aggregate 4 Gigabit LAN ports and 1 Gigabit WAN ports concurrently for the Multi-Gig experience.Ideal for stadium venues, enterprises and anyone who needs to connect a lot of devices and needs coverage for a over 2500 square foot multilevel home. Whether your family is gaming in the basement or streaming videos by the pool, everyone enjoys ultra-fast wireless speeds.
• 【Backwards Compatible】The 802.11 AX router standard will serve as the speedier successor to the more versatile 802.11ac. It will also maintain backwards compatible with previous wireless standards (802.11a/b/g/n/ac), something 802.11ac won’t offer. Intelligently selects the fastest WiFi band for every device connection.

Main Components

l Power Supply : Power adapter ( 12V/2.5A )

l Ethernet Ports : Five (5) 10/100/1000 (1 WAN and 4 LAN) Gigabit Ethernet ports with auto-sensing technology；IEEE802.3 , IEEE802.3u

l Button : Reset Push Button 、WPS Push Button

l Ports : 4x LAN Ports , WAN Port , WPS Button , Reset Button , DC Port (12V) Power Button ( Looking from left to right )

l LED :1 for Power\Internet\WPS

WIFI Performance

2.4GHz （802.11ax，2*2）
Standard	2.4GHz: IEEE802.11ax/IEEE802.11n/IEEE802.11g/IEEE 802.11b
Antenna	Two (2) internal antennas 3dBi
Connection rate	600Mbps
5GHz Low-Band（802.11ax,2*2)
Standard	5.0GHz: 802.11ax/802.11ac/IEEE 802.11n/IEEE 802.11a
Antenna	Two (2) internal antennas 3dBi
Connection rate	1.2Gbps
5GHz High-Band（802.11ax,3*3)
Standard	5.0GHz: 802.11ax/802.11ac/IEEE 802.11n/IEEE 802.11a
Antenna	Four (4) internal antennas 3dBi
Connection rate	1.8Gbps
