75/15 Teplem smrštitelná opravná zesílená manžeta
- Maks. średnica ośrodka złącza:75mm
- Min. średnica zewnętrzna kabla :15mm
- Length: Up to 1400mm
- Installation: Wraparound
- Product description: 1. Equal to Raychem/Commscope CWST 75/15 heat shrink wraparound cable repair sleeve; 2. Customized length,printing,logo available; 3. Designed to quickly repair damaged cable jacketing;
Product introduction

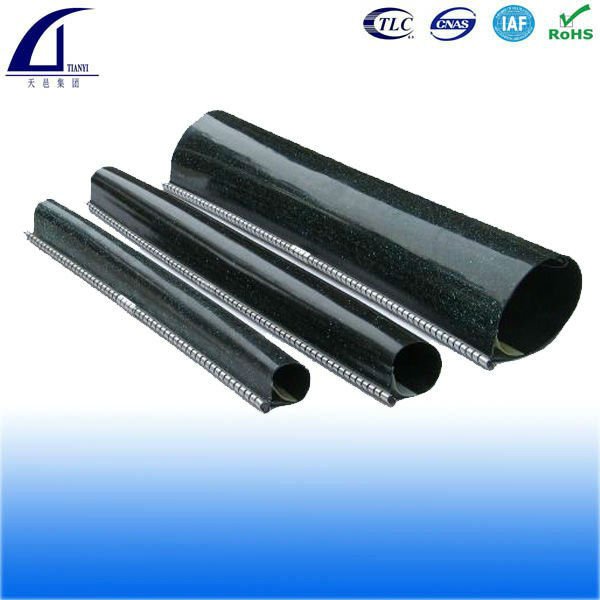

Our RSBJW Wraparound Heat Shrink Cable Repair Sleeve is a protective product used to repair damaged or deteriorated cable without the need to disconnect or cut the cable. These wraparound cable repair sleeves are typically used in telecommunications, power transmission, and other industries where cables are exposed to environmental stress, mechanical damage, or wear and tear. The RSBJW wraparound cable repair sleeves can be applied directly over the damaged area of the cable, providing a sealed, waterproof, and durable protective layer.
- Fiber-reinforced: Yes
- Wraparound type: Yes
- Hot melt adhesive layer: Yes
- Thermo Adhesive Painting: Yes
Key Features of Wraparound Cable Repair Sleeves:
- -Heat-Shrinkable: Many sleeves shrink when heat is applied, creating a tight seal around the cable.
- -Waterproofing: Most sleeves provide excellent resistance to water ingress, making them ideal for outdoor use.
- -UV and Corrosion Resistance: These sleeves often come with UV-resistant materials to withstand exposure to sunlight and harsh environments.
- -Mechanical Protection: They protect cables from abrasion, chemicals, and other potential hazards.
RSBJW Heat Shrink Wraparound Cable Repair Sleeve Specificaton:
Description |
Max. Cable Dia. |
Min. Cable Dia. |
Length Supplied |
Remark |
RSBJW 43/8-XX |
43 |
8 |
100~1400mm |
|
RSBJW 55/12-XX |
55 |
12 |
100~1400mm |
|
RSBJW 75/15-XX |
75 |
15 |
100~1400mm |
|
RSBJW 100/25-XX |
100 |
25 |
100~1400mm |
|
RSBJW 125/30-XX |
125 |
30 |
100~1400mm |
|
RSBJW 135/45-XX |
135 |
45 |
100~1400mm |
|
RSBJW 150/45-XX |
150 |
45 |
100~1400mm |
|
RSBJW 160/50-XX |
160 |
50 |
100~1400mm |
|
RSBJW 200/65-XX |
200 |
65 |
100~1400mm |
|
These heat shrinkable wraparound repaire sleeves can be customized as per request.
