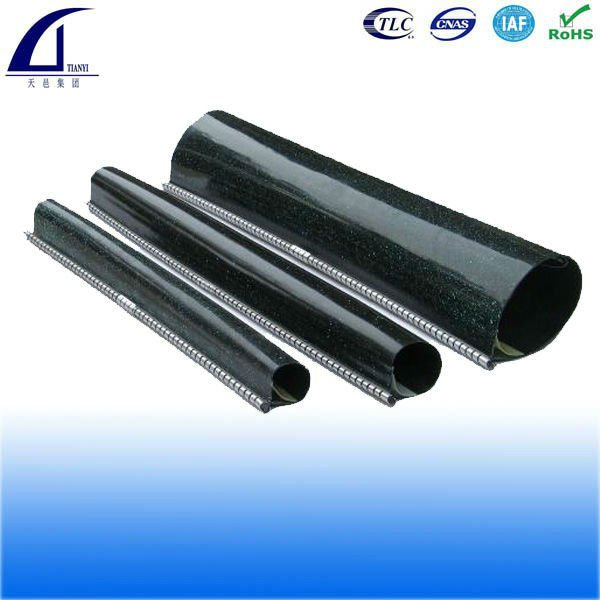

HDCW Wraparound Heat Shrink Cable Repair Sleeve

Our RSBJW Wraparound Heat Shrink Cable Repair sleeve is a cost-efffective alternative replacment for 3M™ HDCW Wraparound Heat Shrink Cable Repair Sleeves. The RSBJW wraparound heat shrink cable repair sleeves are designed for quick, durable repairs to damaged cable jackets, offering protection against harsh environments.

Features and Benefits:

• -Quick and Easy Installation: Can be installed efficiently using standard heating tools like a torch, even in confined spaces.
• -Maximum Protection: Offers robust protection against mechanical stress and damage.
• -Good Bonding: Designed to bond well with standard cable jacket materials like polyethylene, lead, and PVC.
• -Compliance: Qualified to meet ANSI C119.1 standards, ensuring high reliability.
• -Voltage Ratings: Suitable for:
• -Low voltage cable insulation up to 1000V.
• -Jacket repair on cables up to 35kV.
• -Harsh Environmental Performance: Excellent performance even in extreme weather conditions.
• -Hot Melt Adhesive: Ensures a moisture-resistant, durable seal to protect the cable from water ingress.

• -Cable Jacket Repair**: Designed to repair damaged cable jackets quickly.
• -Rejacketing In-line Splices**: Can also be used to provide insulation and protection for in-line cable splices.
• -Versatility**: Suitable for use in underground, aerial, or direct-buried cable installations.

• -Material: Made from modified cross-linked polyolefin with a hot-melt adhesive liner inside the sleeve.
• -Water-Tight Seal: Upon heating, the sleeve shrinks, and the adhesive melts, creating a water-tight seal between the sleeve and the cable.
• -Corrosion-Proof Metal Channel: Used to secure the sleeve during installation, ensuring proper closure and durability.
• -Variety of Sizes: Available in four lengths and five diameters to accommodate various cable sizes. Custom lengths are available upon request.

• -Repairing or insulating cables in environments exposed to moisture, mechanical stress, or temperature variations.
• -Insulation on cables up to 1000V.
• -Jacket repair on cables up to 35kV.

Application Guide Summary:

Key Details:

• Length: Ranges from 9.8 inches (250 mm) to 47.2 inches (1200 mm).
• Conductor Size: Supported conductor sizes range from #8 AWG up to 2000 MCM, depending on the model.
• Insulation Use Range: Refers to the expanded diameter of the sleeve, which is the range that the sleeve can accommodate.
• Recovered Diameter: The diameter of the sleeve after heating and shrinking to its final size.
