Gigabit Passive Optical Network-GPON Optical Network Unit-GPON ONU

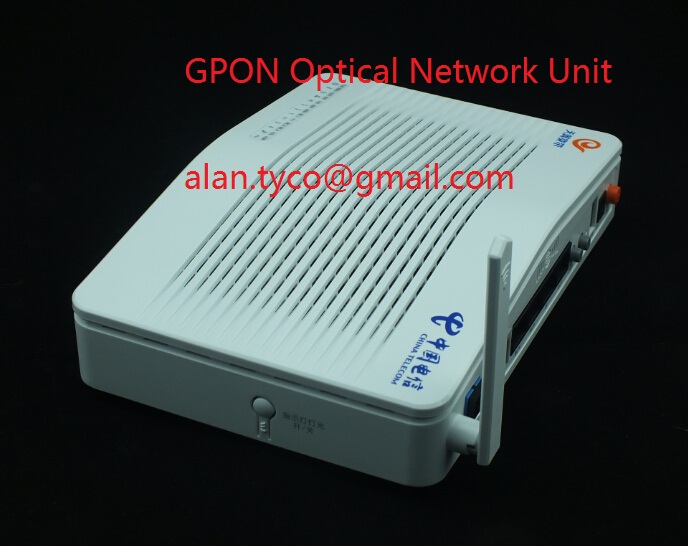

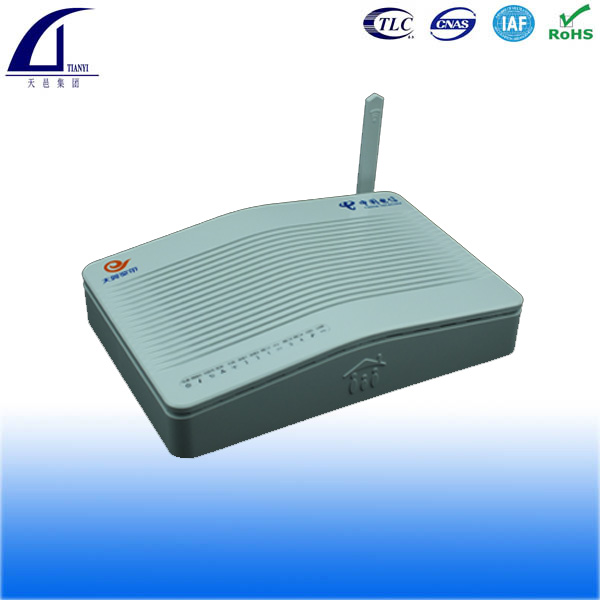

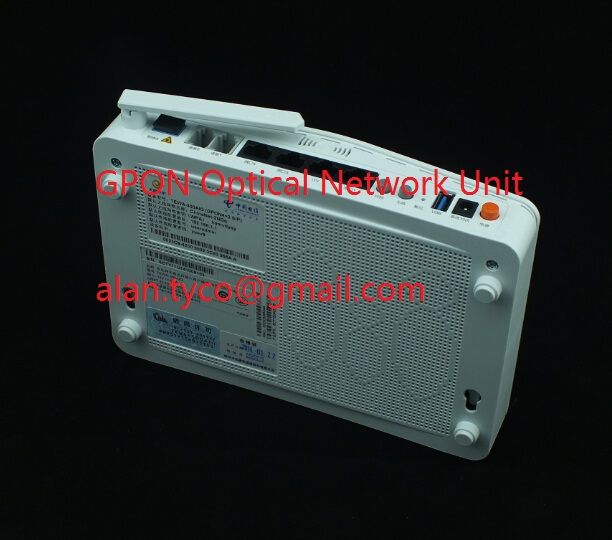

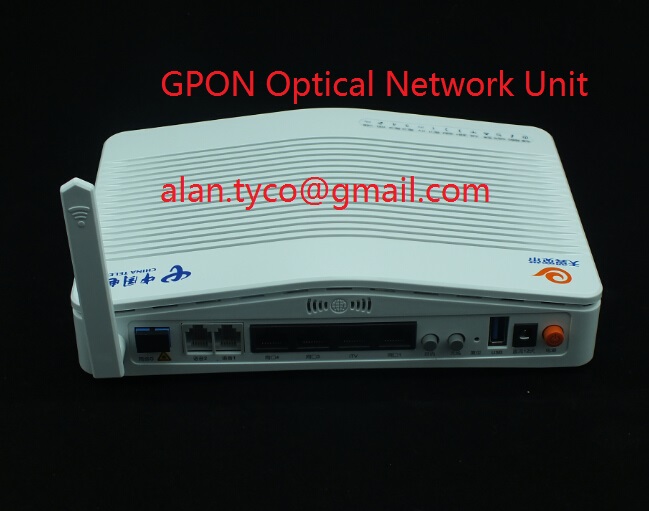

TEWA-300AIG GPON Optical Network Unit(ONU) is a feature-rich and cost effective home gateway solution for Triple Play service delivery to the home. The ONU has been designed to cater for current and future communications needs with capabilities for VoIP, Data and IPTV.

Tianyi's GPON product line TEWA-300AI series ONU products include TEWA-300AI (single 100M Ethernet port), TEWA-300EA (four 100M Ethernet ports) and TEWA-300AIG(single 1000M Ethernet port) three models. The products comply to IEEE802.3ah standard, meeting the relating requirements of GEPON equipment in the international YD/T 1475-2006 Technical Requirements for Access Network——Passive Optical Network Based on Ethernet (EPON) and China Telecom on EPON Technology Requirements. The products have high transmission rate, strong QOS function, small size, low consumption, good manageability and other advantages, it is suitable for FTTH/FTTO/FTTB and other application environments.

ONT (Optical Network Termination), also called ONU (Optical Network Unit), refer to the consumer end equipment in an optical Fiber to the Home (FTTH) link. The ONT/ONU receives downstream data from the OLT (Optical Line Termination) through the passive optical splitters and provides video, voice, and broadband services to the consumer.

Features:

1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
2. Integrated OMCI and TR069 remote configuration and maintenance function.
3. Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
4. Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
5. Fully compatibility with OLT based on Broadcom chipset etc.
6. Support 802.11n WiFi (2T2R) function.
7. Support NAT, Firewall function.
8. Support IPv4 and IPv6 dual stack.
9. Integrated line testing compliant with GR-909 on POTS.
l  The WAN port supports bridge, router and bridge/router mixed mode.

Data Service Function:

1.  Full speed non-blocking switching.
2.  2048 MAC address table.
3.  64 full range 4095 VLAN ID
4.  Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5.  Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6.  Support auto polarity detection of Ethernet ports (AUTO MDIX).
7.  Integrated IEEE802.1p QoS with four level priority queues.
8.  Support IPv4 IGMP snooping and IPv6 MLD snooping.
9.  Support bridging, router and bridging/router mixed mode.

WIFI Service Function:

1.   Integrated 802.11b/g/n, 300Mbps, 2T2R.
2.   Support 128 connections.
3.   Support WEP and WPA/WPA2 security protocols.

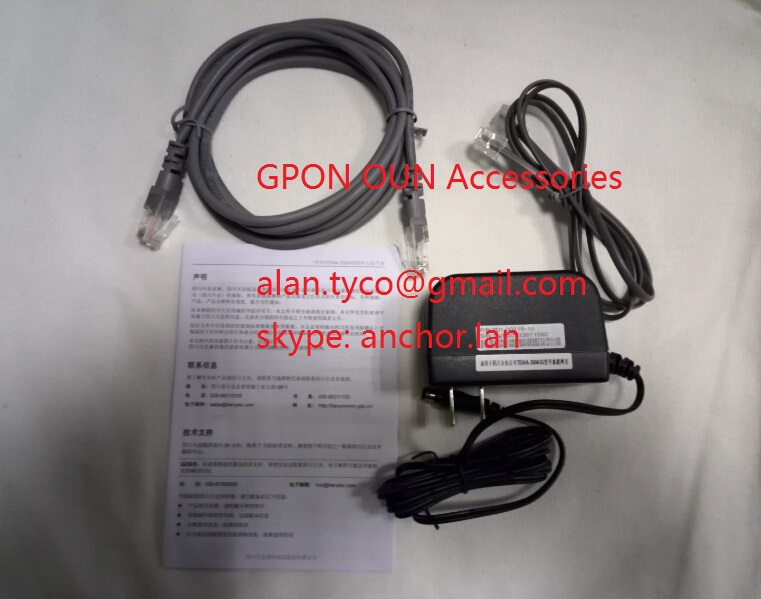

Packaging:
