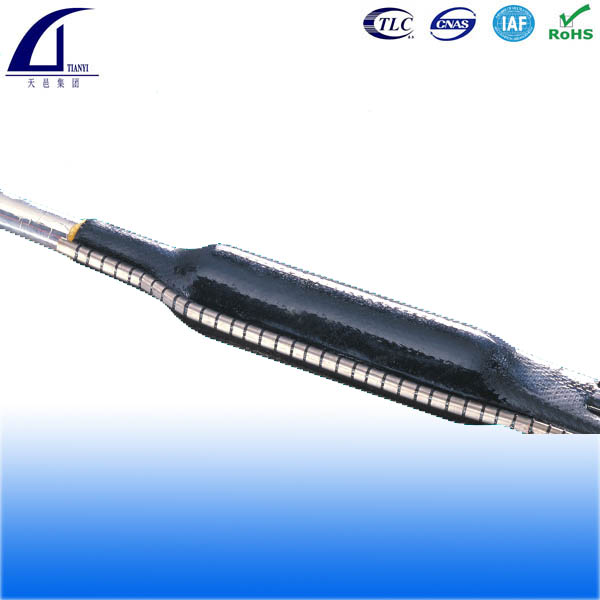

RSBJ 550 non-pressurized Heat Shrinkable Closures(XAGA 550)
- Product description: 1. Equal to Raychem XAGA 500/550 non-pressurized heat shrinkable closures; 2. Customer size,logo and printing available; 3. Fiber reinforced heat shrinkable sleeve;
Product introduction
RSBJ 500/550 Fiber Reinforced heat shrinkable closure System for non-pressurized cooper networks
Description of RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
RSBJ heat shrinkable joint closure system for pressurized cable jointing, which is equal to XAGA 500/550 series heat shrinkable closures manufactured by Tyco.
Structure of RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
Non-pressure reinforced type: PE + reinforced fiber mesh + PE + foil + adhesive.
Features:
- Easy installation
- Glass fibre composite structure gives high split resistance
- Few components, fast and easy installation
- High “craft friendliness” enhanced by visual indicators for optimum installation
- Approval for 4 cables in or out
- Interchangeable air valve, air connector or low profile blanking screw
- Lead or polyethylene jacketed cables
- Can be used on single and double sheathed cables
- Range of closures to suit all cable sizes
- Hot-melt adhesive designed specifically for non-pressurized closure applications
RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
Specifications:
Tianyi P/N
Tyco Equivalent P/N
Max splice bundle diameter, D
Min cable diameter, d
Splice length, L
RSBJ 500 43/8-150
XAGA 500-43/8-150
43
8
150
RSBJ 500 43/8-300
XAGA 500-43/8-300
43
8
300
RSBJ 500 55/12-150
XAGA 500-55/12-150
55
12
150
RSBJ 500 55/12-300
XAGA 500-55/12-300
55
12
300
RSBJ 500 75/15-240
XAGA 500-75/15-240
75
15
240
RSBJ 500 75/15-400
XAGA 500-75/15-400
75
15
400
Tianyi P/N
Tyco Equivalent P/N
Max splice bundle diameter, D
Min cable diameter, d
Splice length, L
RSBJ 550 43/8-350
XAGA 550 43/8-350
43
8
350
RSBJ 550 55/12-150
XAGA 500-55/12-150
55
12
150
RSBJ 550 75/15-250
XAGA 550 75/15-250
75
15
250
RSBJ 550 75/15-500
XAGA 550 75/15-500
75
15
500
RSBJ 550 92/25-500
XAGA 550 92/25-500
92
25
500
RSBJ 550 122/30-500
XAGA 550 122/30-500
122
30
500
RSBJ 550 122/30-650
XAGA 550 122/30-650
122
30
650
RSBJ 550 160/42-720
XAGA 550 160/42-720
160
42
720
RSBJ 550 200/50-500
XAGA 550 200/50-500
200
50
500

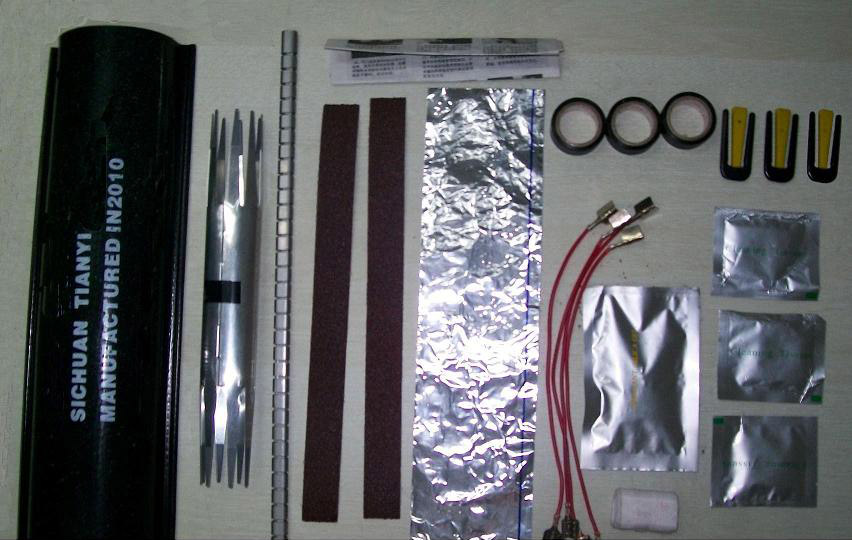

Accessories for Heat Shrinkable Closure(straight joint):
1. Heat Shrinkable Sleeve, 2. Stainless Steel Channel, 3. Channel clip if any,
4. Canister(aluminum or cardboard), 5. Canister Sealing Foil Sheet 6. Foil Protection Sheet,
7. Shield continuity wire with both clips, 8. Abrasive, 9. Cleaning Tissue,
10. PVC tapes, 11. Silica Gel Dessicant, 12. Installation Guide
Accessories for Branch Off Kits:
1. Branching clip,
2. Shield continuity wire with one clip,
3. Connector,
4. Cable Tie
