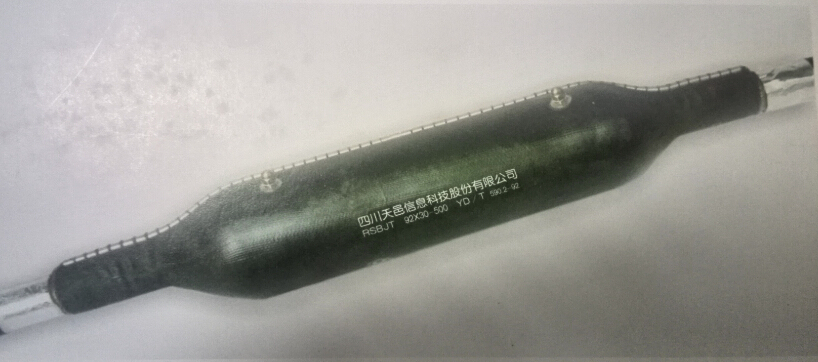

RSBJT1650 Re-entrable Heat Shrinkable Splice Closures
- Product description: 1. Equal to Raychem XAGA 1650 non-pressurized re-entrable heat shrinkable splice closure kit; 2. Customer size,logo and printing available; 3. With Re-enterable Filling Compound;
Product introduction
RSBJT Re-entrable Heat Shrinkable Splice Closure System for non-pressurized cooper networks
Description of RSBJT Non-pressurized Re-entrable Heat Shrinkable Splice Closure Kit:
Equal to Raychem XAGA 1650, this splice closure system provides a fast, simple way to seal and encapsulate telephone cable splices in nonpressurized, buried cable system. The sleeve of this closure is made of Super Sleeve sealing material, which combines the strength and durability of composite design with proven heat-shrink technology.
Application: available to accommodate sheath openings up to 37 inches and for cable sizes up to 3600 pairs.
Structure of RSBJT Non-pressurized Re-entrable Heat Shrinkable Splice Closure Kit:
Non-pressure reinforced type: PE + reinforced fiber mesh + PE + foil + adhesive.
Features:
- Easy installation
- Glass fibre composite structure gives high split resistance
- Few components, fast and easy installation
- High “craft friendliness” enhanced by visual indicators for optimum installation
- Approval for 4 cables in or out
- Interchangeable air valve, air connector or low profile blanking screw
- Lead or polyethylene jacketed cables
- Can be used on single and double sheathed cables
- Range of closures to suit all cable sizes
- Hot-melt adhesive designed specifically for non-pressurized closure applications
RSBJT Non-pressurized Re-entrable Heat Shrinkable Joint Closure System:
Specifications:
Description
Max. Splice
Bundle Dia.
(mm)
Min. Single
Cable Dia.
(mm)
Sheath Opening
Length
(mm)
55/15-300
55
15
300
95/30-500
95
30
500
135/42-500
135
42
500
135/42-650
135
42
650
180/50-650
180
50
650
Accessories for Heat Shrinkable Closure(straight joint):
1. Heat Shrink Sleeve
2. Metal Channel
3. Channel clip
4. Metal Canister
5. PVC tapes
6. Cleaning Tissue
7. Aluminum Strip for Canister
8. Aluminum Sheet for Cable
9. Abrasive Strip
10. Shield continuity wire with both clips
11. Gauge Measuring
12. Silica Gel Dessicant
13. Isolator Paper
14. Wrapping Tape
15. DR Tape
16. Plastic Mesh Grip
17. Re-enterable Compound
18. Plastic Bag
19. Gloves
