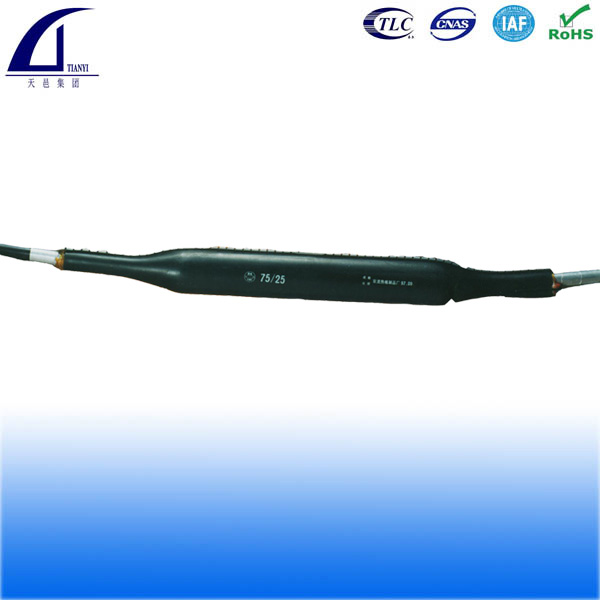

Unpressurized Wraparound Heat Shrink Closures
- Product description: 1. Non-reinforced Wraparound Heat Shrinkable Closures Kit for unpressurized telephone cable network; 2. Suitable for overhead, underground, or pedestal use, both in new construction and maintenance a
Product introduction
RSBJ Unpressurized heat shrink closure for unpressurized telephone cable networks, equal to XAGA 500/550 heat shrink closure system. By using wrap-aruond heat shrink sleeve, this pressurized heat shrink closures can be used for overhead, underground, or pedestal use, both in new construction and maintenance applications of unpressurized telepone cable networks.
Description of RSBJ Wraparound heat shrinkable closure Kit:
RSBJ heat shrinkable joint closure system for pressurized cable jointing, which is equal to XAGA 500/550 series heat shrinkable closures manufactured by Tyco.
Features:
- Easy and fast installation
- Few components, fast and easy installation
- High “craft friendliness” enhanced by visual indicators for optimum installation
- Approval for 4 cables in or out
- Interchangeable air valve, air connector or low profile blanking screw
- Lead or polyethylene jacketed cables
- Can be used on single and double sheathed cables
- Range of closures to suit all cable sizes
- Hot-melt adhesive designed specifically for non-pressurized closure applications
RSBJ Wraparound Heat Shrinkable Closure Kit:
Specifications:
Description |
Max. Splice Bundle Dia. (mm) |
Min. Single Cable Dia.(mm) |
Sheath Opening Length(mm) |
Cable Pairs |
|
D |
d |
L |
Wire Dia.: 0.4/0.5mm |
RSBJ 32/11-250 |
32 |
11 |
250 |
10-50 |
RSBJ 42/15-300 |
42 |
15 |
300 |
50-100 |
RSBJ 50/18-400 |
50 |
18 |
400 |
100-150 |
RSBJ 62/22-500 |
62 |
22 |
500 |
100-200 |
RSBJ 75/25-500 |
75 |
25 |
500 |
200-400 |
RSBJ 92/30-500 |
92 |
30 |
500 |
400-600 |
RSBJ 122/38-500 |
122 |
38 |
500 |
600-1200 |
RSBJ 150/55-500 |
150 |
55 |
500 |
1400-2000 |
RSBJ 175/55-500 |
175 |
55 |
500 |
2000-2400 |
RSBJ 200/65-500 |
200 |
65 |
500 |
2400-3600 |
Accessories for Heat Shrinkable Closure(straight joint):
1. Heat Shrinkable Sleeve, 2. Stainless Steel Channel, 3. Channel clip if any,
4. Canister(aluminum or cardboard), 5. Canister Sealing Foil Sheet 6. Foil Protection Sheet,
7. Shield continuity wire with both clips, 8. Abrasive, 9. Cleaning Tissue,
10. PVC tapes, 11. Silica Gel Dessicant, 12. Installation Guide
Accessories for Branch Off Kits:
1. Branching clip,
2. Shield continuity wire with one clip,
3. Connector,
4. Cable Tie
