Optical Fiber Fusion Protection Sleeves-60mm optical fiber splice protector sleeves (100 Pack)

Product description:

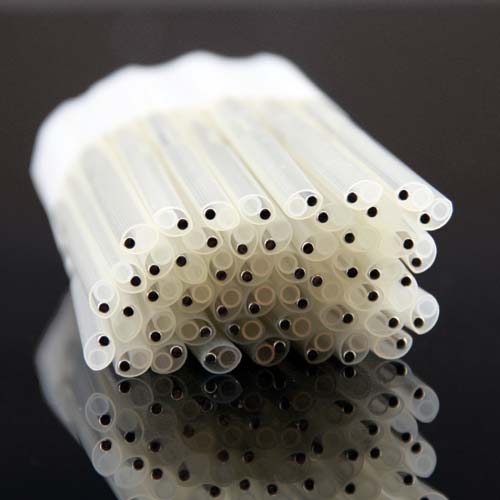

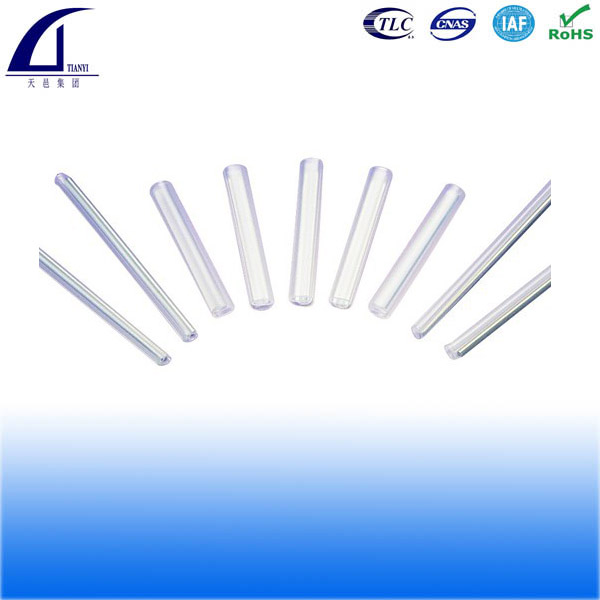

Heat shrinkable optical fiber fusion splice protection sleeve, also called heat shrink protections sleeve,optical fiber protection sleeve, optical fiber splice protector,with a steel rod (ceramic rod for ribbon fiber) for mechanical protection and a hot fusion insert for sealing.

This optical fiber splice protector sleeve provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable.

Features:

• -Reinforces and protects fiber optic splice
• -Stainless Steel Rod
• -Clear sleeve for easy inspection and minimizing damage during installation
• -One piece design with hot fusion insert for sealing against moisture and other contaminants
• -Different colors of hot fusion insert for labeling and identification
• -RoHS compliant halogen free, environmentally friendly

Parameters:

-Color Sleeve: Transparent
-Length: 3.0 mm x 60 mm
-Stainless Rod: 1.2*55mm
-Retains optic transmission properties of optical fiber

Temperature Range:
-Operating Temperature: 55C to 100C
-Shrink Temperature: 120C

Packaging details:
100pcs per small pvc bag
20 small bags=2000pcs per big pvc bag
25000 PCs/CTN
Weight: 20 KGs/CTN

Standard and customized optical fiber fusion splice protection sleeves available.

Ordering information:

P/N	Heat Shrinkable Tube(mm)				Hot Melt Tube(mm)				Steel Rod(mm)			Packing
	Outer Dia. (±0.1)	Wall Thickness (±0.05)	Length (±0.5)	Material	Outer Dia. (±0.1)	Wall Thickness (±0.05)	Length (±0.5)	Material	Outer Dia. (±0.1)	Length (±0.5)	Material
S6015	4.0	0.25	60	EVA	2.4	0.45	60	EVA	1.5	55	Stainless Steel 304	100PCs/Bag
S6012	3.5	0.25	60	EVA	2.0	0.35	60	EVA	1.2	55
S6010	2.7	0.25	60	EVA	1.4	0.35	60	EVA	1.0	55
S5515	4.0	0.25	55	EVA	2.4	0.45	55	EVA	1.5	50
S5512	3.5	0.25	55	EVA	2.0	0.35	55	EVA	1.2	50
S5510	2.7	0.25	55	EVA	1.4	0.35	55	EVA	1.0	50
S5015	4.0	0.25	50	EVA	2.4	0.45	50	EVA	1.5	45
S5012	3.5	0.25	50	EVA	2.0	0.35	50	EVA	1.2	45
S5010	2.7	0.25	50	EVA	1.4	0.35	50	EVA	1.0	45
S4515	4.0	0.25	45	EVA	2.4	0.45	45	EVA	1.5	40
S4512	3.5	0.25	45	EVA	2.0	0.35	45	EVA	1.2	40
S4510	2.7	0.25	45	EVA	1.4	0.35	45	EVA	1.0	40
S4015	4.0	0.25	40	EVA	2.4	0.45	40	EVA	1.5	35
S4012	3.5	0.25	40	EVA	2.0	0.35	40	EVA	1.2	35
S4010	2.7	0.25	40	EVA	1.4	0.35	40	EVA	1.0	35
S3515	4.0	0.25	35	EVA	2.4	0.45	35	EVA	1.5	30
S3512	3.5	0.25	35	EVA	2.0	0.35	35	EVA	1.2	30
S3510	2.7	0.25	35	EVA	1.4	0.35	35	EVA	1.0	30



Clike here to download fiber optic splice protection sleeves datasheet.
