GFT 16fibers Fiber Optical Splice Closure FOSC

GFT 16fibers Fiber Optical Splice Closure-FOSC

GFT Optical Distribution Box(ODB) is high-density 2-in-2-out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 etc. mini type splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with sixteen 3mm drop cables.  The GFT Optical Distribution Box can be used as a optical distribution box or a optical splice closure.

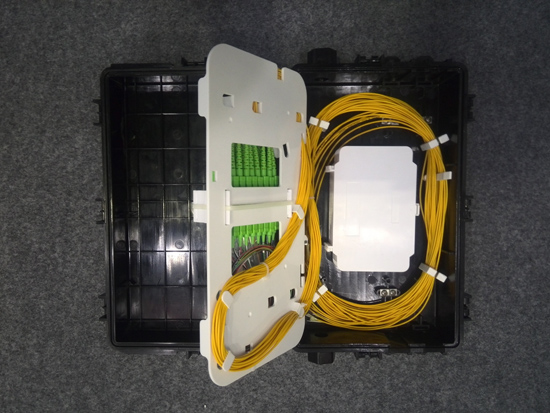

If the GFT Optical Distribution Box is used as optical distribution box, it is able to install three 12cores fusion trays (or 24 cores fusion trays by placing two layers of the fiber melting tubes) and one 1*16 PLC splitters on the flipping board.

If the GFT Optical Distribution Box is used as fiber optical splice closure, it is able to install five 12cores fusion trays without the flipping board (( or 24 cores fusion trays by placing two layers of the fiber melting tubes )

Features:

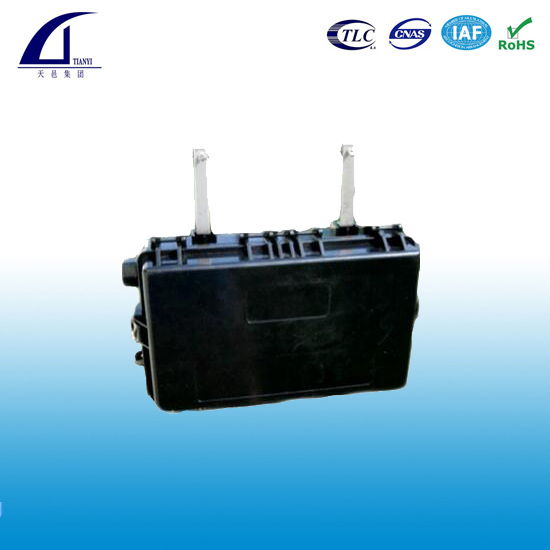

• The GFT Optical Distribution Box design as a inline type which is able to install on aerial cable by hanging.

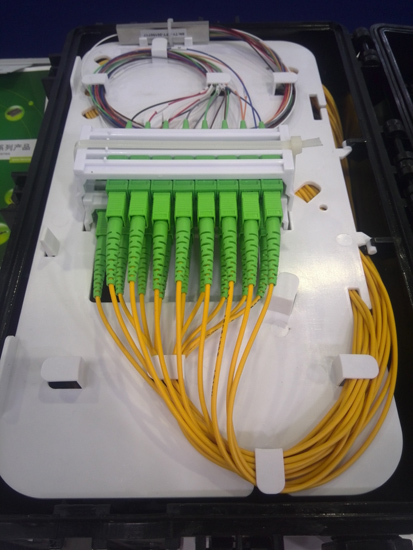

• The GFT Optical Distribution Box accommodates 1x2,1x4,1x8 and 1x16 etc. mini type splitters
• The GFT Optical Distribution Box Sizes: 340 x 220 x 100mm
• The Distribution Box can install outside, with waterproof IP55 and the rubber edge.

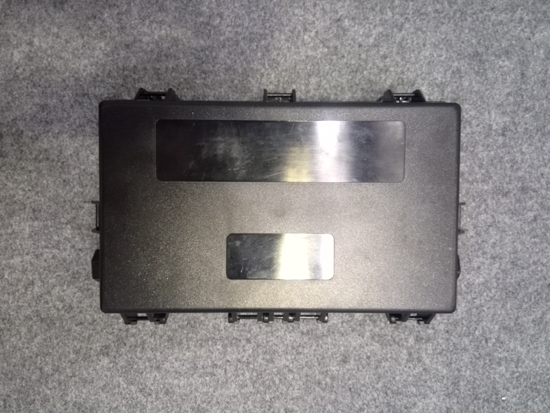

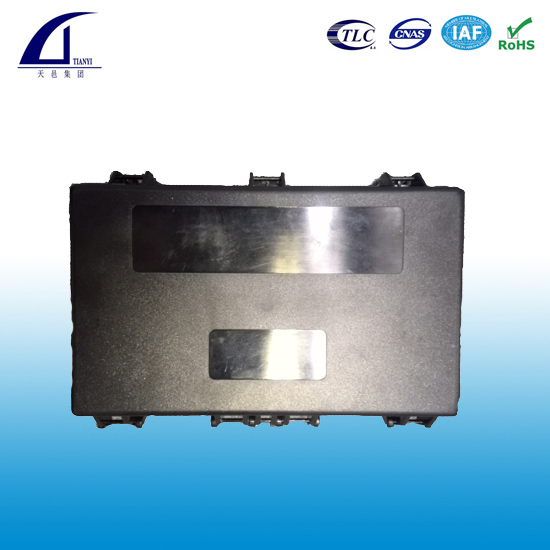

• The front cover and box body are connected by hinge and snap lock.( not used NUT and Bolt lock)
• The body of the optical distribution box is made of Polycarbonate (PC) or Polybutylene terephthalate (PBT) or Acrylonitrile butadiene styrene (ABS)
• The GFT optical distribution box can withstand the pressure of not less than 45 kg And the impact of not less than 2kg/m2

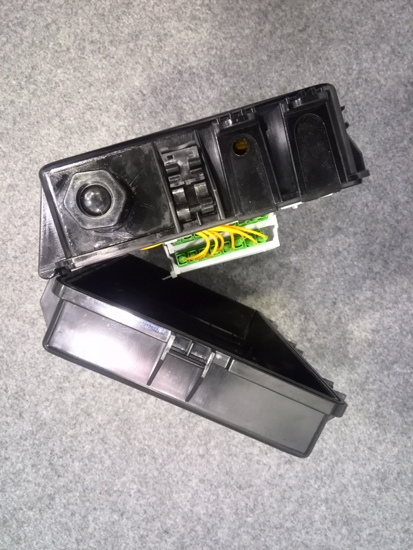

• The GFT optical distribution box has at least 4 holes (round type) for the insertions of optic cable W 9-16 mm, and has at least 16 holes (round type) for the insertion of drop cable W 3 mm.
• The GFT optical Distribution Box can Install at most 2 splicing trays
