RSBJ 43/8-150 nonpressurized Cooper Splice Closure

Product description: 1. Equal to Raychem XAGA 500/550 nonpressurized cooper splice closures; 2. Customer size,logo and printing available; 3. Fiber reinforced heat shrinkable sleeve;
Inquiry

Product introduction

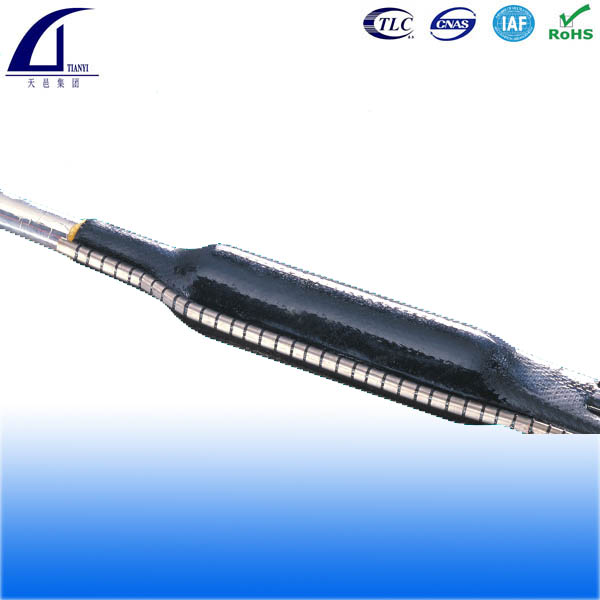

RSBJ 500/550 Fiber Reinforced Cooper Splice Closure System for non-pressurized cooper networks

Description of RSBJ 500/550 Non-pressurized heat shrinkable closures:

RSBJ heat shrinkable joint closure system for pressurized cable jointing, which is equal to XAGA 500/550 series heat shrinkable closures manufactured by Tyco.

Structure of RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:

Non-pressure reinforced type: PE + reinforced fiber mesh + PE + foil + adhesive.

Features:

Easy installation
Glass fibre composite structure gives high split resistance
Few components, fast and easy installation
High “craft friendliness” enhanced by visual indicators for optimum installation
Approval for 4 cables in or out
Interchangeable air valve, air connector or low profile blanking screw
Lead or polyethylene jacketed cables
Can be used on single and double sheathed cables
Range of closures to suit all cable sizes
Hot-melt adhesive designed specifically for non-pressurized closure applications

RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:

Heat Shrinkable Closures for Pressurized Cable

Specifications:

Tianyi P/N	Tyco Equivalent P/N	Max splice bundle diameter, D	Min cable diameter, d	Splice length, L
RSBJ 500 43/8-150	XAGA 500-43/8-150	43	8	150
RSBJ 500 43/8-300	XAGA 500-43/8-300	43	8	300
RSBJ 500 55/12-150	XAGA 500-55/12-150	55	12	150
RSBJ 500 55/12-300	XAGA 500-55/12-300	55	12	300
RSBJ 500 75/15-240	XAGA 500-75/15-240	75	15	240
RSBJ 500 75/15-400	XAGA 500-75/15-400	75	15	400

Tianyi P/N	Tyco Equivalent P/N	Max splice bundle diameter, D	Min cable diameter, d	Splice length, L
RSBJ 550 43/8-350	XAGA 550 43/8-350	43	8	350
RSBJ 550 55/12-150	XAGA 500-55/12-150	55	12	150
RSBJ 550 75/15-250	XAGA 550 75/15-250	75	15	250
RSBJ 550 75/15-500	XAGA 550 75/15-500	75	15	500
RSBJ 550 92/25-500	XAGA 550 92/25-500	92	25	500
RSBJ 550 122/30-500	XAGA 550 122/30-500	122	30	500
RSBJ 550 122/30-650	XAGA 550 122/30-650	122	30	650
RSBJ 550 160/42-720	XAGA 550 160/42-720	160	42	720
RSBJ 550 200/50-500	XAGA 550 200/50-500	200	50	500
